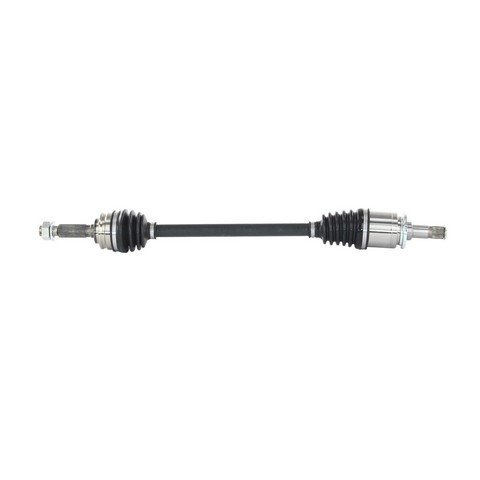

TrakMotive CH-8266 rear left CV axle shaft for the 2007-2017 Jeep Compass and other vehicles carries drive torque to the rear left wheel. Its joints let the shaft keep turning as the suspension moves.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 23 splines and conventional outboard joint with 25 splines
- Axle nut included, with a 32 mm hex, M22x1.5 thread and cotter pin locking
- Overall compressed length of 741 mm (29.17 in)
Quick facts
- Part: TrakMotive CH-8266 CV axle shaft
- Fits: 2007-2017 Jeep Compass and other vehicles
- Position: Rear left
A clicking or popping noise on turns, a vibration while driving, or torn boots with grease thrown around the joint can mean the axle is worn. A worn wheel bearing, a loose suspension part or an out-of-balance tire can be behind these signs too, so find the cause before buying.
Fits
It is a direct-fit replacement for the 2007-2017 Jeep Compass, the 2007-2017 Jeep Patriot and the 2007-2009 Dodge Caliber. This listing is one axle for the rear left; each side of the rear axle takes one, and the rear right is its own part, ordered separately.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Overall compressed length: 741 mm (29.17 in)
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
- Inboard splines: 23
- Outboard splines: 25
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- Joint boots: neoprene, inboard and outboard
- Axle nut locking: cotter pin
- ABS tone ring: not included
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and one axle nut.
Interchange: 66-3598 · 60-3598 · CH-8-8634
139266 · NCV12600 · 72945 · 5085141AA · 5085141AB · 5085141AC · RL085141AC
This part cross-references / interchanges with the following part numbers:
139266, 66-3598, 60-3598, NCV12600, 72945, CH-8-8634, 5085141AA, 5085141AB, 5085141AC, RL085141AC, CH-8266
Frequently Asked Questions
Will the TrakMotive CH-8266 rear left axle fit the 2007-2017 Jeep Patriot?
Yes. TrakMotive CH-8266 is a rear left CV axle shaft for the 2007-2017 Jeep Patriot, as well as the 2007-2017 Jeep Compass and the 2007-2009 Dodge Caliber.
Does the TrakMotive CV axle come with the axle nut?
Yes. TrakMotive CH-8266 comes with its axle nut, which has a 32 mm hex and an M22x1.5 thread. The ABS tone ring is not included.
How many splines does this rear left axle shaft have?
This axle shaft has 23 splines on the inboard end and 25 on the outboard end. The inboard joint is a male type and the outboard joint is conventional.
How can I tell if the neoprene boots on this axle are damaged?
Cracks, tears or grease thrown around the joint can mean a boot is damaged. A clicking noise on turns can also come from a worn joint, and a shop can inspect it.
Does the TrakMotive CV axle shaft interchange with 66-3598?
Yes. 66-3598 is listed as an interchange number for this axle, and the Interchange line on this page gives the other numbers.
