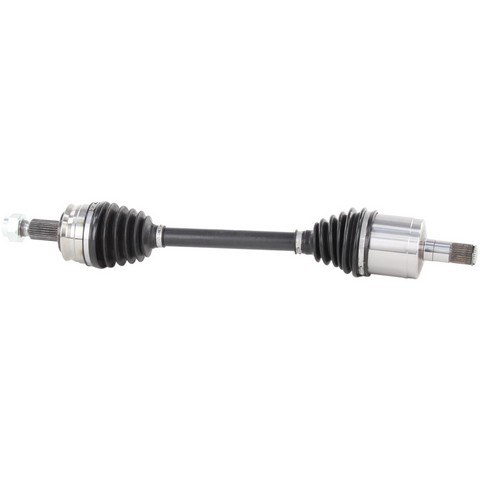

Front Left CV Axle Shaft for 2013-2016 Dodge Dart & More - TrakMotive CH-8267

$128.99

TrakMotive CV Axle Shaft CH-8267 - view 2

TrakMotive CV Axle Shaft CH-8267 - view 3

Part number: CH-8267

UPC: 844084012678

Condition: New

Weight: 14.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$128.99

Current Stock: 38

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:CH-8267

$128.99

Description

TrakMotive CH-8267 front left CV axle shaft for the 2013-2016 Dodge Dart and other vehicles carries drive torque from the transmission to the front left wheel. The joints at each end let the wheel steer and move with the suspension while the shaft keeps turning.

Neoprene boots on both the inboard and outboard joints
27 splines at the inboard end and 27 at the outboard end
Axle nut included, with stake locking
Conventional outboard joint and male inboard joint

Quick facts

Part: TrakMotive CH-8267 CV axle shaft
Fits: 2013-2016 Dodge Dart and other vehicles
Position: Front left
Condition: New

A clicking or popping noise in turns, vibration under acceleration or grease thrown from a torn boot can mean the joint or boot is worn. A worn wheel bearing, a loose motor mount or an out-of-balance tire can be behind those signs too, so pin down the cause before you buy an axle.

Fits

It fits the 2013-2016 Dodge Dart and the 1984 Dodge Colt. This listing is one front left axle shaft; the front right is a separate part, and the pair on that axle is normally replaced at the same time.

Specifications

Fit and size

Position: front left
Quantity for the front left: 1
Overall compressed length: 635 mm (25 in)
Splines: 27 inboard, 27 outboard
Axle nut: M24x1.5 thread, 36 mm (1.43 in) hex

Build and materials

Joints: conventional outboard, male inboard
Joint boots: neoprene, inboard and outboard
Axle nut locking: stake
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front left CV axle shaft with its axle nut. The front left takes one; the front right is a separate part.

Interchange: 139267 · NCV12105

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

139267, NCV12105, CH-8267

Buyer's Q&A

Frequently Asked Questions

Will TrakMotive CH-8267 fit a 2013-2016 Dodge Dart?

Yes. TrakMotive CH-8267 fits the 2013-2016 Dodge Dart and the 1984 Dodge Colt, on the front left side only.

Does this TrakMotive CV axle come with the axle nut?

Yes. The axle nut is included, with an M24x1.5 thread, a 36 mm hex and stake locking. The ABS tone ring is not included.

How long is this TrakMotive CV axle shaft?

TrakMotive CH-8267 measures 635 mm (25 in) overall compressed length, with 27 splines at the inboard end and 27 at the outboard end.

What does a clicking noise when turning mean on a front left CV axle?

A clicking or popping noise in turns, vibration under acceleration or grease around a torn boot can mean a worn joint or boot. A shop can confirm which part is at fault.

Does NCV12105 interchange with this axle shaft?

Yes. NCV12105 and 139267 are listed as numbers that TrakMotive CH-8267 replaces on this front left axle shaft.
