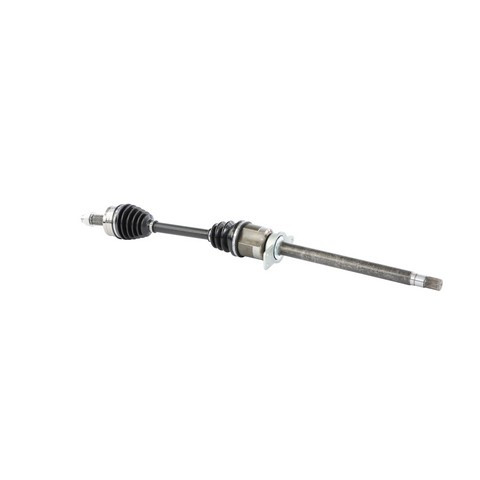

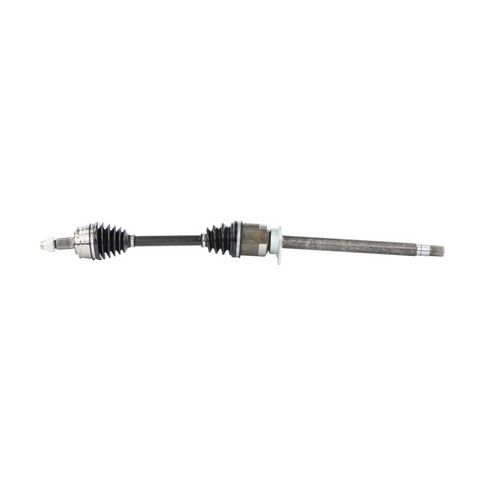

TrakMotive CH-8274 front right CV axle shaft for the 2013-2016 Dodge Dart and other vehicles carries drive torque to the wheel as the suspension moves. Its CV joints let the shaft keep turning the wheel through steering and suspension travel.
A torn boot with grease thrown around the wheel well, clicking when you turn, or vibration under acceleration can mean a worn CV axle shaft. A worn wheel bearing, a tire problem or a worn engine mount can be behind similar signs too, so find the cause before you buy a CV axle shaft.
This CV axle shaft fits the 2013-2016 Dodge Dart and the 1984 Dodge Colt.
Fit and size
Build and materials
One front right CV axle shaft with its axle nut. The front right side takes one CV axle shaft, and the front left one is a separate part ordered on its own. The ABS tone ring is not included.
Interchange: 60-3791
139274 · NCV12103
This part cross-references / interchanges with the following part numbers:
Will the TrakMotive CV axle CH-8274 fit a 2013-2016 Dodge Dart?
Yes, TrakMotive CH-8274 is listed for the 2013-2016 Dodge Dart on the front right side; the front left axle is a separate part.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes, TrakMotive CH-8274 includes the axle nut (M24x1.5 thread, 36 mm hex); the ABS tone ring is not included.
How long is the front right axle and how many splines does it have?
This axle has an overall compressed length of 971 mm (38.21 in). It has 27 splines at the inboard joint and 27 at the outboard joint.
What noises can mean a front right CV axle is wearing out?
A clicking or popping sound when turning, or vibration while accelerating, can mean the joint is worn. A split boot is something you can see with the engine off.
Does TrakMotive CH-8274 replace NCV12103?
Yes, NCV12103 is listed as an interchange number for TrakMotive CH-8274, along with 60-3791 and 139274.
