Rear CV Axle Shaft for 2015-2022 Dodge Charger & More - TrakMotive CH-8307

$176.99

TrakMotive CV Axle Shaft CH-8307 - view 2

TrakMotive CV Axle Shaft CH-8307 - view 3

Part number: CH-8307

UPC: 844084029584

Condition: New

Weight: 26.10 LBS

Item Package Quantity: 1

$176.99

Current Stock: 50

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

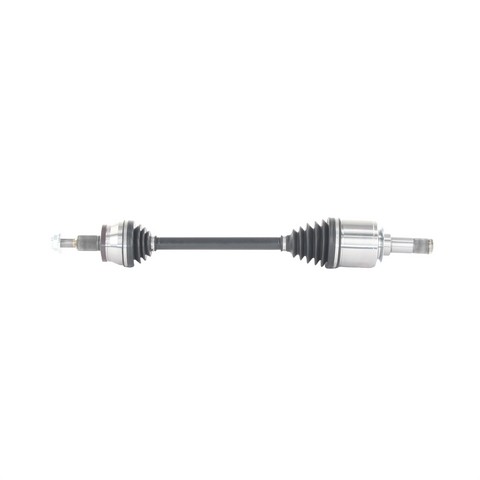

TrakMotive CV Axle Shaft P/N:CH-8307

$176.99

Description

TrakMotive CH-8307 rear CV axle shaft for the 2015-2022 Dodge Charger and other vehicles carries drive torque from the differential to the rear wheel. The TrakMotive CV axle shaft's inboard and outboard joints keep turning while the suspension moves.

Magnetic ABS ring with 48 teeth, included on the shaft
Neoprene boots on both the inboard and outboard joints
Male inboard joint with 32 splines
Conventional outboard joint with 35 splines
Overall compressed length of 815 mm (32.09 in)

Quick facts

Part: TrakMotive CH-8307 CV axle shaft
Fits: 2015-2022 Dodge Charger and other vehicles
Position: Rear
Condition: New

A torn boot with grease thrown around the joint, clicking on turns or vibration under acceleration can mean a worn axle shaft. Before you replace one, rule out a worn wheel bearing, a tire problem or another driveline fault that can show similar signs, since the cause may be a different part.

Fits

This is also a CV axle shaft for the 2015-2021 Chrysler 300 and the 2015-2022 Dodge Challenger, and the rear axle on these cars takes two shafts. This listing is one shaft, so the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 2
Overall compressed length: 815 mm (32.09 in)
Inboard splines: 32
Outboard splines: 35

Build and materials

Inboard joint: male
Outboard joint: conventional
Boot material, both joints: neoprene
ABS sensor ring: magnetic, 48 teeth, included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One rear CV axle shaft with its ABS tone ring. The axle nut is not included.

Interchange: NCV12137

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV12137, CH-8307

Buyer's Q&A

Frequently Asked Questions

Is TrakMotive CH-8307 the right rear 2015-2022 Dodge Charger CV axle?

Yes. TrakMotive CH-8307 is a rear CV axle shaft for the 2015-2022 Dodge Charger. The rear axle takes two shafts, and this listing is one.

Does the TrakMotive CV axle come with the axle nut?

No. The TrakMotive CH-8307 comes as one rear CV axle shaft with its ABS tone ring, and the axle nut is not included.

How many splines does this rear CV axle shaft have?

The male inboard joint has 32 splines and the outboard end has 35 splines. Overall compressed length is 815 mm (32.09 in).

What does a torn neoprene boot on a rear CV axle shaft mean?

A torn boot can let grease out and dirt into the joint, and clicking on turns or vibration under acceleration can follow. A shop can inspect the joint if you see grease around the wheel.

Does NCV12137 cross to this TrakMotive rear CV axle shaft?

Yes. NCV12137 is listed as an interchange number for TrakMotive CH-8307, a rear CV axle shaft.
