Front Right CV Axle Shaft for 2007-2017 Jeep Compass & More - TrakMotive CH-8332

$176.99

TrakMotive CV Axle Shaft CH-8332 - view 2

TrakMotive CV Axle Shaft CH-8332 - view 3

Part number: CH-8332

UPC: 844084044594

Condition: New

Weight: 19.50 LBS

Item Package Quantity: 1

$176.99

Current Stock: 31

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

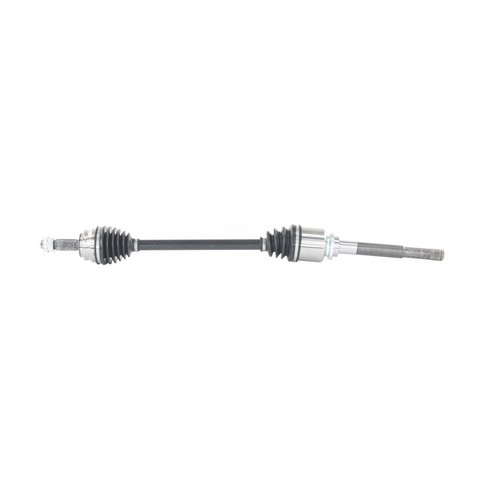

TrakMotive CV Axle Shaft P/N:CH-8332

$176.99

Description

TrakMotive CH-8332 front right CV axle shaft for the 2007-2017 Jeep Compass and other vehicles carries drive torque from the drivetrain to the front right wheel. Its joints let the wheel keep turning as the suspension moves and the steering turns.

Male inboard joint with 27 splines
Conventional outboard joint with 28 splines
Neoprene boots on the inboard and outboard joints
Axle nut included, with M22x1.5 thread and 32 mm hex

Quick facts

Part: TrakMotive CH-8332 CV axle shaft
Fits: 2007-2017 Jeep Compass and other vehicles
Position: Front right

A clicking or popping noise when turning, vibration while driving, or grease flung from a torn boot can be signs of a worn axle. Since other parts can produce similar symptoms, start with a visual check of the boots with the engine off; a shop can test anything beyond a look.

Fits

This listing is one axle for the front right, and the front left is ordered separately. It fits the 2007-2017 Jeep Compass, the 2007-2017 Jeep Patriot and the 2008 Dodge Caliber, and each of them takes one on that side.

Specifications

Fit and size

Position: front right
Quantity for the front right: 1
Overall compressed length: 963 mm (37.89 in)
Inboard splines: 27
Outboard splines: 28
Axle nut thread size: M22x1.5
Axle nut hex size: 32 mm (1.26 in)

Build and materials

Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Boot material: neoprene (both joints)
ABS tone ring: not included
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

CH-8332

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive CH-8332 right for the 2007-2017 Jeep Patriot?

Yes. TrakMotive CH-8332 is a front right axle that fits the 2007-2017 Jeep Patriot, and that side takes one. The front left is a separate part.

Does the TrakMotive CV axle come with the axle nut?

Yes. The TrakMotive CH-8332 includes its axle nut, which has an M22x1.5 thread and a 32 mm hex. The ABS tone ring is not included.

What is the spline count on this TrakMotive CV axle shaft?

The male inboard joint has 27 splines and the conventional outboard joint has 28 splines. Both shaft ends use a spline connection.

What does a worn front right CV axle sound like?

A clicking or popping noise when turning, vibration while driving or grease flung from a torn boot can be signs of wear. A shop can test it if you are unsure.

How long is this axle when compressed?

The TrakMotive CH-8332 has an overall compressed length of 963 mm (37.89 in).
