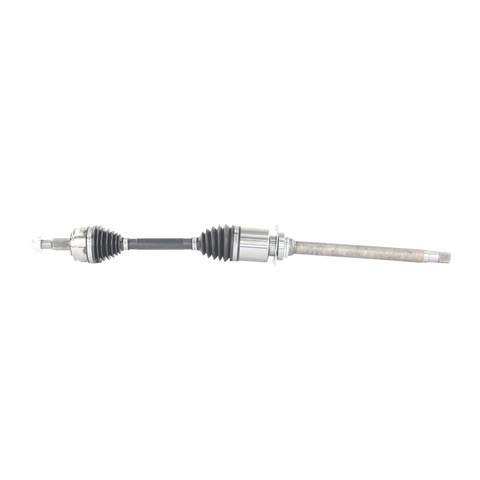

TrakMotive CH-86037 front right CV axle shaft for the 2017-2022 Jeep Compass sends drive power to the front right wheel. The TrakMotive CV axle has a joint at each end, so the wheel keeps turning as it steers and the suspension moves.
- Conventional outboard joint at the wheel end
- Long male inboard joint at the other end
- 27 outboard splines and 26 inboard splines
- Axle nut thread M24x1.5 with a 36 mm hex
Quick facts
- Part: TrakMotive CH-86037 CV axle shaft
- Fits: 2017-2022 Jeep Compass
- Position: Front right
- Condition: New
A clicking or popping noise in turns, grease thrown from a torn boot, or vibration under acceleration can mean a CV axle is worn. A worn wheel bearing, a tire problem or worn suspension parts can be behind some of those symptoms too, so find out what is causing them before you buy.
Fits
This CV axle shaft fits the 2017-2022 Jeep Compass. The listing is one shaft for the front right position, which takes one; the front left is a separate part, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 for the front right
- Overall compressed length: 962 mm (37.88 in)
- Overall extended length: 1017 mm (40.06 in)
Build and materials
- Condition: New
- ABS tone ring: not included
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut is not included, and the old one may not be reusable, so plan on a new nut.
Frequently Asked Questions
Does the TrakMotive CH-86037 fit the 2017-2022 Jeep Compass?
Yes, TrakMotive CH-86037 is the front right CV axle shaft for the 2017-2022 Jeep Compass; the front left is a separate part.
Is the axle nut included with this TrakMotive CV axle shaft?
No, TrakMotive CH-86037 comes without the axle nut; the nut thread is M24x1.5 with a 36 mm hex, so plan on a new one.
How many splines does this front right CV axle shaft have at each end?
The outboard end has 27 splines and the inboard end has 26. The inboard joint is a long male type and the outboard joint is conventional.
Could a clicking noise in turns come from a worn CV axle?
Yes, clicking when turning, grease around a torn boot or vibration under acceleration are common signs of a worn axle joint, and a shop can confirm it.
Is an ABS tone ring included with the TrakMotive CH-86037?
No, the ABS tone ring is not included with TrakMotive CH-86037.
