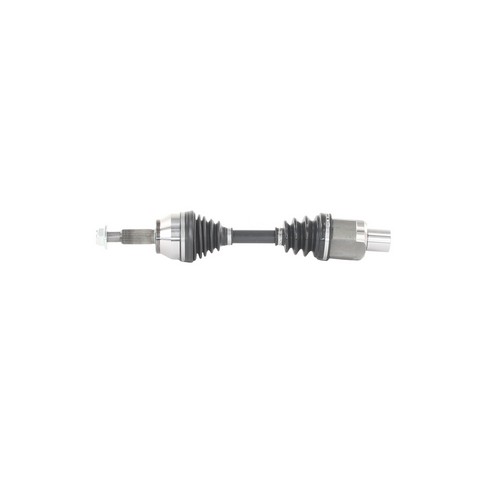

TrakMotive FD-8167 front right CV axle shaft for the 2003-2011 Ford Ranger and other vehicles sends drive torque to the front right wheel. Its two joints let the wheel turn and move with the suspension while it keeps driving.
- Female inboard joint with 27-1T splines
- Conventional outboard joint with 27 splines
- Neoprene boots on the inboard and outboard joints
- Self-locking axle nut included, M22x1.5 thread with a 32 mm hex
- Overall compressed length of 514 mm (20.24 in)
Quick facts
- Part: TrakMotive FD-8167 CV axle shaft
- Fits: 2003-2011 Ford Ranger and other vehicles
- Position: Front right
- Condition: New
Clicking on turns, vibration under acceleration or grease flung from a split boot can be signs of a worn axle shaft. Before replacing it, look over the boots and joints with the engine off for splits, grease spray or play; a shop can trace the cause if nothing shows.
Fits
The 2003-2011 Ford Ranger, the 2002-2003 Ford Explorer and the 2004-2010 Mazda B4000 each take one of these on the front right side. Changing the left and right axles together is the usual practice, and this listing is a single front right shaft; the front left is ordered separately. If your car is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Overall compressed length: 514 mm (20.24 in)
- Inboard splines: 27-1T
- Outboard splines: 27
- Axle nut thread: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
- Axle nut height and length: 22 mm by 35 mm
Build and materials
- Inboard joint: female
- Outboard joint: conventional
- Joint boots: neoprene, inboard and outboard
- Axle nut: self-locking, included
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One front right CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.
Interchange: 66-2169 · 80-2958 · AX-9483
NCV11152 · 169167 · 71278 · 1F7025400 · 1F7025400A · 2L2Z3B436AA · 6L5Z3A428AA · FD10559
This part cross-references / interchanges with the following part numbers:
NCV11152, 169167, 66-2169, 80-2958, 71278, 1F7025400, 1F7025400A, 2L2Z3B436AA, 6L5Z3A428AA, FD10559, FD-8167, AX-9483
Frequently Asked Questions
Is this CV axle right for the 2002-2003 Ford Explorer?
Yes. TrakMotive FD-8167 is a front right CV axle shaft that fits the 2002-2003 Ford Explorer. The "Vehicles it fits" section shows the other cars it fits.
Does the TrakMotive CV axle include the axle nut?
Yes. This axle comes with a self-locking axle nut, M22x1.5 thread with a 32 mm hex. The ABS tone ring is not included.
How long is this front right axle shaft?
The TrakMotive FD-8167 has an overall compressed length of 514 mm (20.24 in), with 27-1T splines on the inboard end and 27 splines on the outboard end.
Why does my front right CV axle click when I turn?
A clicking noise on turns can mean a worn outer joint, and a split boot letting grease out is another sign to look for with the engine off. A shop can confirm the cause.
Does FD-8167 replace Ford part number 2L2Z3B436AA?
Yes. 2L2Z3B436AA is one of the numbers this TrakMotive FD-8167 replaces, and it is printed on the Interchange line with the other cross-reference numbers.
