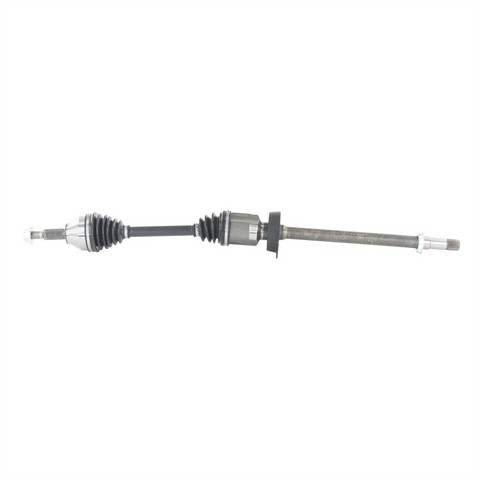

TrakMotive FD-8199 front right CV axle shaft for the 2011-2014 Ford Explorer and other vehicles passes drive torque from the transmission side to the wheel. Its CV joints let the wheel steer and move with the suspension while the shaft keeps turning.
A clicking noise on tight turns, grease thrown from a split boot or vibration under acceleration can mean this axle is worn, though a worn wheel bearing or a tire problem can cause similar noise or vibration.
This CV axle for the 2011-2014 Ford Explorer also fits the 2013 Ford Police Interceptor Utility. The front axle takes one shaft per side; this listing is the right side, the left side is a separate part, and both sides are normally done at the same time.
Fit and size
Build and materials
One CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 66-2283 · 60-2283 · FD-8-8757
169199 · NCV11072 · 71396 · 40718043 · BB533B436HA · BB533B436HB · BB533B436HC · BB533B436HD · BB5Z3B436C · BB5Z3B436J · FD10573ER
This part cross-references / interchanges with the following part numbers:
Does the TrakMotive FD-8199 fit the 2013 Ford Police Interceptor Utility?
Yes. TrakMotive FD-8199 is listed for the 2013 Ford Police Interceptor Utility as a front right CV axle shaft. The left side of the axle takes a separate part.
Does this TrakMotive CV axle come with the axle nut?
Yes. The axle nut is included, with an M22x1.5 thread and a 30 mm hex. The ABS tone ring is not included.
What is the compressed length of this TrakMotive CV axle shaft?
Overall compressed length is 42.83 in (1088 mm). The inboard end has 27 splines and the outboard end has 38.
How can I tell if a front right CV axle is wearing out?
Clicking on turns, grease around a split boot or vibration while accelerating can point to a worn axle. With the vehicle parked, look at the neoprene boots for cracks or tears.
Does BB5Z3B436C cross to this front right axle?
Yes. BB5Z3B436C is on the Interchange line for TrakMotive FD-8199, along with the other cross-reference numbers listed on this page.
