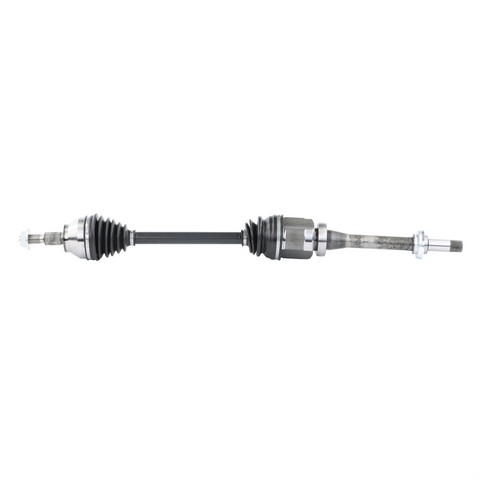

TrakMotive FD-8208 front right CV axle shaft for the 2013-2019 Ford Escape sends engine drive torque to the front right wheel. This TrakMotive CV axle is a single shaft with a joint at each end.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 35 splines
- Conventional outboard joint with 27 splines
- Self-locking axle nut included, with an M22x1.5 thread and 32 mm hex
- Overall compressed length of 952 mm (37.48 in)
Quick facts
- Part: TrakMotive FD-8208 CV axle shaft
- Fits: 2013-2019 Ford Escape
- Position: Front right
- Condition: New
A clicking noise on turns, grease thrown from a torn boot or a vibration under acceleration can mean this shaft is worn, though a worn wheel bearing or an out-of-balance tire can produce a similar vibration. Find the cause first, then replace the axle if it is the culprit.
Fits
Front axles are normally swapped as a pair, so think about the left one too; this listing is one front right shaft, and the front left is a separate part. It fits the 2013-2019 Ford Escape, which takes one on the front right.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 per listing, for the front right
- Overall compressed length: 952 mm (37.48 in)
- Inboard splines: 35
- Outboard splines: 27
- Axle nut thread: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
Build and materials
- Joints: male inboard, conventional outboard
- Boot material: neoprene on both joints
- Axle nut: self-locking, hex head, included
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and one self-locking axle nut. The ABS tone ring is not included.
Interchange: 66-2362 · FD-8-8756
169208 · NCV11165 · 40718047 · CV6Z3B436AM · CV6Z3B436AQ · CV6Z3B436AT · CV6Z3B436AY · CV6Z3B436D · FD10569ER
This part cross-references / interchanges with the following part numbers:
169208, 66-2362, NCV11165, 40718047, FD-8-8756, CV6Z3B436AM, CV6Z3B436AQ, CV6Z3B436AT, CV6Z3B436AY, CV6Z3B436D, FD10569ER, FD-8208
Frequently Asked Questions
Does the TrakMotive CV axle shaft FD-8208 fit the 2013-2019 Ford Escape?
Yes. TrakMotive FD-8208 is a front right shaft for the 2013-2019 Ford Escape; the left side takes a separate shaft.
Is the axle nut included with this front right CV axle?
Yes. The self-locking axle nut (M22x1.5 thread, 32 mm hex) is included, but the ABS tone ring is not.
How many splines does the TrakMotive FD-8208 have on each end?
TrakMotive FD-8208 has a male inboard joint with 35 splines and a conventional outboard joint with 27 splines. Its overall compressed length is 952 mm (37.48 in).
What are the signs of a failing front CV axle?
Clicking when turning, grease around a torn boot or vibration under acceleration can be signs of a worn axle. A shop can confirm the cause.
Can TrakMotive FD-8208 replace part number CV6Z3B436AM?
Yes. CV6Z3B436AM is one of the numbers TrakMotive FD-8208 replaces, and the Interchange line lists the others.
