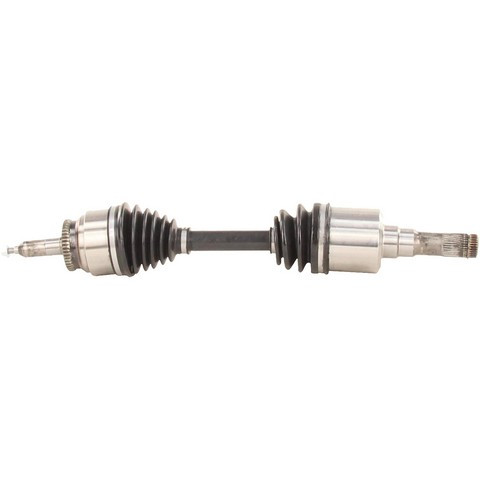

TrakMotive FD-8277 front left CV axle shaft for the 2015-2020 Ford F-150 and other vehicles sends drive torque to the wheel and flexes with suspension travel.
A clicking or popping noise when turning, a vibration under acceleration or grease thrown from a torn boot can mean the axle is wearing out. Before ordering, look over the boots with the engine off. Intact boots with the same noise may point to something else, such as a wheel bearing, which a shop can test.
This TrakMotive CV axle shaft fits the 2015-2020 Ford F-150, the 2018-2021 Ford Expedition and the 2018-2021 Lincoln Navigator, and each takes one on the front left. This listing is one shaft; the front right is a separate part, and both sides are normally replaced together.
Fit and size
Build and materials
One CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.
Interchange: 66-2379
169277 · NCV11059 · NCV11169 · FL3Z3A427A · GL343A428AB
This part cross-references / interchanges with the following part numbers:
Does the TrakMotive FD-8277 fit the 2018-2021 Ford Expedition?
Yes. TrakMotive FD-8277 is a front left CV axle shaft for the 2018-2021 Ford Expedition. It takes one per vehicle on the front left.
Does this TrakMotive CV axle come with the axle nut?
Yes. A self-locking axle nut with M10x1.5 thread and a 14 mm hex is included. The ABS tone ring is not part of this listing.
How long is the TrakMotive FD-8277 axle shaft?
Overall compressed length is 643 mm (25.31 in). TrakMotive FD-8277 has 31 splines on the male inboard joint and 45 on the conventional outboard joint.
Why does grease around a front left axle boot matter?
Grease thrown from a torn neoprene boot can mean the joint has lost its lubricant. A clicking noise when turning can point to a worn joint, and if the axle is the cause, this shaft replaces it.
Can I use FD-8277 in place of number FL3Z3A427A?
Yes. FL3Z3A427A is one of the numbers this axle replaces, along with GL343A428AB, NCV11059 and 66-2379.
