Rear CV Axle Shaft for 2015-2017 Ford Edge - TrakMotive FD-8311

$136.99

TrakMotive CV Axle Shaft FD-8311 - view 2

TrakMotive CV Axle Shaft FD-8311 - view 3

TrakMotive CV Axle Shaft FD-8311 - view 4

TrakMotive CV Axle Shaft FD-8311 - view 5

TrakMotive CV Axle Shaft FD-8311 - view 6

Part number: FD-8311

UPC: 844084029447

Condition: New

Weight: 14.80 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$136.99

Current Stock: 27

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

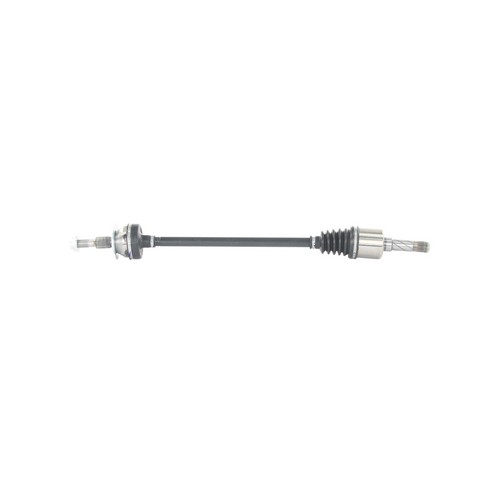

TrakMotive CV Axle Shaft P/N:FD-8311

$136.99

Description

TrakMotive FD-8311 rear CV axle shaft for the 2015-2017 Ford Edge sends drive torque to the wheel as the suspension moves. It is a new TrakMotive CV axle that replaces a rear shaft whose joints or boots have worn out.

Conventional outboard joint with 27 splines at the wheel end
Male inboard joint with 25 splines
Neoprene boots on the inboard and outboard joints
Overall compressed length of 854 mm (33.6 in)

Quick facts

Part: TrakMotive FD-8311 CV axle shaft
Fits: 2015-2017 Ford Edge
Position: Rear
Condition: New

Clicking in turns, vibration, or grease flung from a torn boot can point to a worn axle, though other parts can cause similar signs. With the engine off, look at the boots for splits and grease around the joints to find the cause before replacing. This listing is one shaft; the rear axle takes one per side, and both are normally replaced together.

Fits

This is a direct-fit replacement CV axle for the 2015-2017 Ford Edge, rear position.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Overall compressed length: 854 mm (33.6 in)
Inboard joint: male, 25 splines
Outboard splines: 27

Build and materials

Outboard joint: conventional
Joint boot material: neoprene (inboard and outboard)
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft. The axle nut is not included.

Interchange: NCV11091

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV11091, FD-8311

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive CV axle shaft FD-8311 the right rear axle for the 2015-2017 Ford Edge?

Yes. TrakMotive FD-8311 is a rear CV axle shaft that fits the 2015-2017 Ford Edge, and that vehicle takes two, one on each side.

Does the TrakMotive FD-8311 come with an axle nut?

No. This TrakMotive FD-8311 listing is one CV axle shaft only. The axle nut and the ABS tone ring are not included.

How many splines does this rear CV axle have on each end?

The inboard end is a male joint with 25 splines, and the outboard end has 27 splines. Overall compressed length is 854 mm (33.6 in).

Why does my rear axle click when turning?

A clicking or popping sound in turns can come from a worn CV joint, and grease escaping from a torn boot is another common sign. A shop can test the axle, since other parts can make similar noises.

Does NCV11091 interchange with TrakMotive FD-8311?

Yes. NCV11091 is listed as an interchange number for TrakMotive FD-8311.
