Front Right CV Axle Shaft for 2016-2018 Ford Focus - TrakMotive FD-8367

$152.99

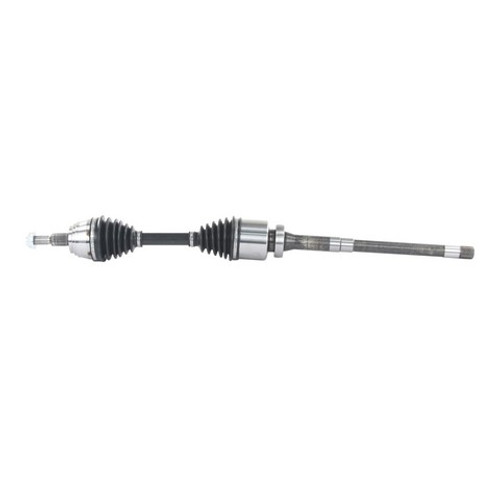

TrakMotive CV Axle Shaft FD-8367

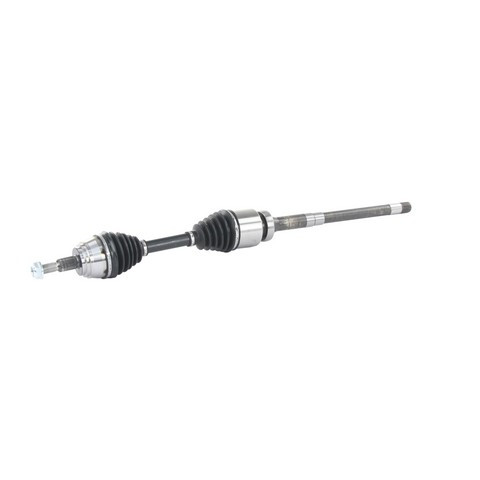

TrakMotive CV Axle Shaft FD-8367 - view 2
TrakMotive CV Axle Shaft FD-8367 - view 3
TrakMotive CV Axle Shaft FD-8367
TrakMotive CV Axle Shaft FD-8367 - view 2
TrakMotive CV Axle Shaft FD-8367 - view 3

Vehicles this part fits
    Part number: FD-8367
    UPC: 844084090386
    Condition: New
    Weight: 23.40 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $152.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    TrakMotive CV Axle Shaft P/N:FD-8367
    TrakMotive CV Axle Shaft P/N:FD-8367
    $152.99
    $152.99

    TrakMotive FD-8367 front right CV axle shaft for the 2016-2018 Ford Focus carries drive power from the transmission to the wheel. The joints on this TrakMotive CV axle let the wheel turn and follow the suspension.

    • Male inboard joint with 26 splines and conventional outboard joint with 27 splines
    • Neoprene boots on both the inboard and outboard joints
    • Self-locking axle nut included, with M22x1.5 thread and 32 mm hex

    Quick facts

    • Part: TrakMotive FD-8367 CV axle shaft
    • Fits: 2016-2018 Ford Focus
    • Position: Front right
    • Condition: New

    A clicking noise on turns, vibration under acceleration, or a torn boot with grease thrown around it can mean an axle is worn. A worn wheel bearing or a tired engine mount can also be behind noise or vibration, so find the cause before buying. Replacing both front axles together is a common choice; this listing is one axle, for the front right.

    Fits

    This is a CV axle for the 2016-2018 Ford Focus, a direct-fit replacement.

    Specifications

    Fit and size

    • Position: front right
    • Quantity for the front right: 1
    • Overall compressed length: 977 mm (38.44 in)
    • Splines: 26 inboard, 27 outboard

    Build and materials

    • Joints: male inboard, conventional outboard, both with spline connections
    • Boot material: neoprene, inboard and outboard
    • Axle nut: included, self-locking, M22x1.5 thread, 32 mm hex
    • ABS tone ring: not included
    • Condition: new
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One front right CV axle shaft and one self-locking axle nut. The front right takes one; the front left is a separate part. The ABS tone ring is not included.

    Interchange: NCV11217 · G1FZ3B436A · G1FZ3B436E

    This part cross-references / interchanges with the following part numbers:

    NCV11217, G1FZ3B436A, G1FZ3B436E, FD-8367

    Frequently Asked Questions

    Is this a CV axle replacement for the 2016-2018 Ford Focus?

    Yes. TrakMotive FD-8367 is the front right CV axle shaft for the 2016-2018 Ford Focus. The front left side is a separate part.

    Does the TrakMotive FD-8367 come with the axle nut?

    Yes. TrakMotive FD-8367 includes a self-locking axle nut with an M22x1.5 thread and a 32 mm hex. The ABS tone ring is not included.

    How many splines does this front right CV axle shaft have?

    The male inboard joint has 26 splines and the outboard joint has 27. Overall compressed length is 977 mm (38.44 in).

    What can a clicking noise when turning mean on a CV axle shaft?

    Clicking on turns can come from a worn joint. A torn boot with grease thrown around it is a sign you can see; have a shop inspect it promptly.

    Does G1FZ3B436A interchange with the TrakMotive FD-8367?

    Yes. G1FZ3B436A is listed as an interchange number for TrakMotive FD-8367, along with NCV11217 and G1FZ3B436E.
