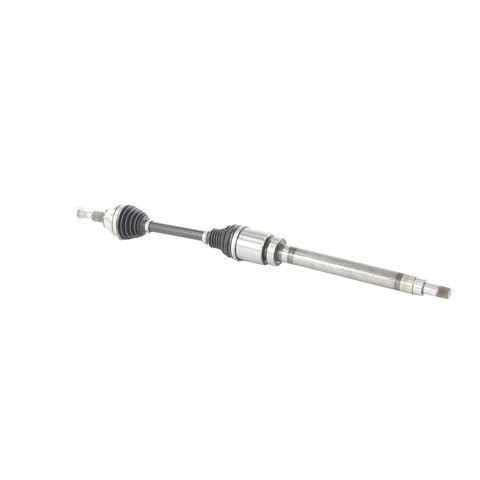

TrakMotive FD-86035 front right CV axle shaft for the 2013-2014 Ford Fusion sends drive torque to the front right wheel. This TrakMotive CV axle has a joint at each end, so the wheel can turn and move with the suspension while it is driven.
A clicking or popping on tight turns, a vibration while accelerating, or a torn boot throwing grease can mean a worn joint. Since other parts can cause similar noises, look at the boots with the engine off for tears and flung grease before you decide to replace the axle.
This CV axle fits the front right of the 2013-2014 Ford Fusion, and the car takes one on that side. A 2014 Ford Fusion CV axle for the left side is a separate part ordered on its own, and the two are normally replaced together.
Fit and size
Build and materials
One CV axle shaft. The axle nut is not included, so plan on a new axle nut, since the old one may be single-use.
This part cross-references / interchanges with the following part numbers:
Is this a 2014 Ford Fusion CV axle replacement?
Yes. TrakMotive FD-86035 fits the front right of the 2013-2014 Ford Fusion.
Is this 2013 Ford Fusion CV axle replacement for one side or both?
One side. This is the front right axle for the 2013-2014 Ford Fusion, and the left axle is ordered separately.
What is the overall length of the TrakMotive CV axle shaft?
TrakMotive FD-86035 measures 1013 mm (39.88 in) compressed and 1065 mm (41.94 in) extended.
What axle nut size goes with this CV axle, and is the nut included?
The axle nut is M22x1.5 with a 32 mm hex and is about 19 mm tall. It is not included with this axle.
Does this front right CV axle shaft come with the ABS tone ring?
No. The ABS tone ring is not included with TrakMotive FD-86035.
