Front Right CV Axle Shaft for 2020-2024 Ford Escape & More - TrakMotive FD-86053

$125.99

TrakMotive CV Axle Shaft FD-86053 - view 2

TrakMotive CV Axle Shaft FD-86053 - view 3

Part number: FD-86053

UPC: 840140517309

Condition: New

Weight: 14.20 LBS

Item Package Quantity: 1

$125.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

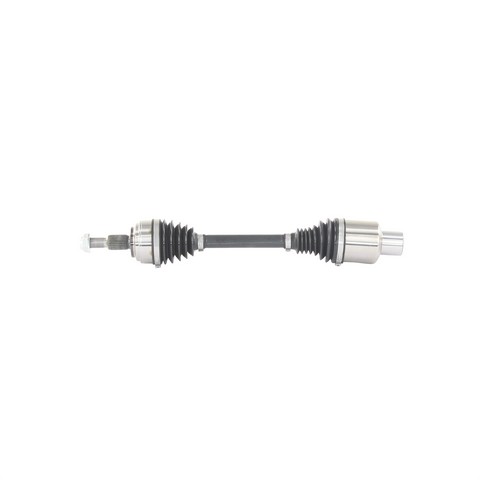

TrakMotive CV Axle Shaft P/N:FD-86053

$125.99

Description

TrakMotive FD-86053 front right CV axle shaft for the 2020-2024 Ford Escape and other vehicles sends drive torque from the transmission to the wheel. The shaft has a splined connection and a joint boot at each end.

Female inboard joint with 27-2T splines
Conventional outboard joint with 27 splines
Thermoplastic boots on both the inboard and outboard joints
Self-locking axle nut with M22*1.5 thread, included with the shaft

Quick facts

Part: TrakMotive FD-86053 CV axle shaft
Fits: 2020-2024 Ford Escape and other vehicles
Position: Front right
Condition: New

A clicking noise on turns, vibration under acceleration or a torn boot with grease thrown out can mean an axle shaft is wearing. A worn wheel bearing, a loose motor mount or a tire problem can be behind similar signs too, so find the cause before buying.

Fits

This TrakMotive CV axle shaft fits the 2020-2024 Ford Escape and the 2021-2023 Ford Bronco Sport. This listing is one shaft for the front right; the 2020-2024 Ford Escape takes one on that side, and the front left shaft is its own part, ordered separately.

Specifications

Fit and size

Position: Front right
Quantity per vehicle: 1
Overall compressed length: 575 mm (22 5/8 in)
Overall extended length: 627 mm (24 11/16 in)
Inboard splines: 27-2T
Outboard splines: 27
Axle nut thread: M22*1.5
Axle nut hex size: 31.8 mm (1 1/4 in)

Build and materials

Inboard joint: female, spline connection
Outboard joint: conventional, spline connection
Boot material: thermoplastic on both joints
Axle nut: self-locking, included
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.

Interchange: NCV11253

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV11253, FD-86053

Buyer's Q&A

Frequently Asked Questions

Is this TrakMotive CV axle a fit for the 2021-2023 Ford Bronco Sport?

Yes. TrakMotive FD-86053 fits the 2021-2023 Ford Bronco Sport as the front right CV axle shaft.

Does the FD-86053 axle shaft come with the axle nut?

Yes. TrakMotive FD-86053 includes a self-locking axle nut with an M22*1.5 thread. The ABS tone ring is not included.

How long is this front right shaft when compressed and extended?

This front right shaft measures 575 mm (22 5/8 in) compressed and 627 mm (24 11/16 in) extended.

What does a clicking noise on turns mean for a CV axle shaft?

A clicking noise on turns, vibration when accelerating or grease thrown from a torn boot can mean the shaft or its joints are worn. Have it checked promptly rather than keep driving on it.

Is NCV11253 a cross-reference for TrakMotive FD-86053?

Yes. NCV11253 is listed as an interchange number for TrakMotive FD-86053.
