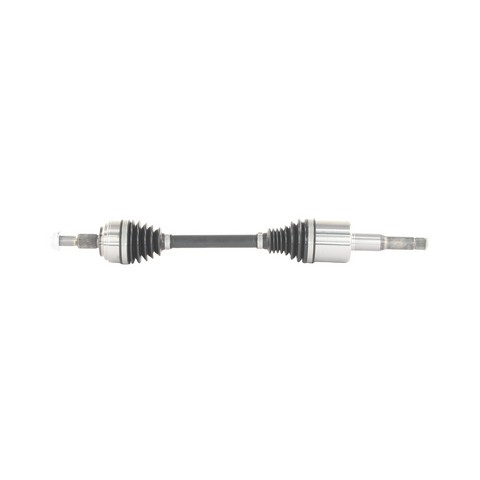

TrakMotive CV Axle Shaft P/N:FD-86055

Be the first to review this product
$127.99
MPN: FD-86055
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
TrakMotive CV Axle Shaft P/N:FD-86055
TrakMotive CV Axle Shaft P/N:FD-86055
$127.99

Keep power flowing smoothly from the transaxle to the front wheel with the TrakMotive CV Axle Shaft FD-86055, a premium-grade front-left replacement for the 2020-2021 Ford Escape (All engines). This complete assembly transmits torque to the driven wheel while its constant-velocity joints allow the axle to flex through suspension travel and steering — the job a worn axle can no longer do quietly.

  • Premium grade build: A CV axle shaft assembly with a conventional outboard joint and a male inboard joint.
  • Spline connections: 22 inboard splines and 27 outboard splines for a direct spline fit at each end.
  • Thermoplastic joint boots: Both the inboard and outboard joints use thermoplastic boots to help retain grease and keep contaminants out.
  • Axle nut included: Ships with a self-locking hex axle nut (M22x1.5 thread, 31.8 mm / 1-1/4 in hex).

Signs the original axle may need replacing include clicking on turns, vibration under acceleration, or grease slung from a torn boot. Overall compressed length 27-9/16 in; extended length 29-9/16 in. No ABS tone ring is included. Country of origin: China. Backed by a Limited Lifetime Warranty.

Interchange: NCV11250 · Manufacturer part number FD-86055

This part cross-references / interchanges with the following part numbers:

NCV11250, FD-86055

Frequently Asked Questions

What vehicle does this CV axle shaft fit?

It is a direct-fit front-left replacement for the 2020-2021 Ford Escape (All engines). Confirm your application in the Buyer's Guide tab before ordering.

Does it include the axle nut?

Yes. It ships with a self-locking hex axle nut with an M22x1.5 thread and a 31.8 mm (1-1/4 in) hex size.

Is an ABS tone ring included?

No. This axle does not include an ABS tone ring. Per the manufacturer, ABS axles fit non-ABS applications unless otherwise noted.

What are the spline counts and boot material?

It has 22 inboard splines and 27 outboard splines, with thermoplastic boots on both the inboard and outboard joints.

What are the signs my CV axle may need replacing?

Common signs include clicking or popping during turns, vibration under acceleration, or grease thrown from a torn boot. Diagnose the cause before replacing.
