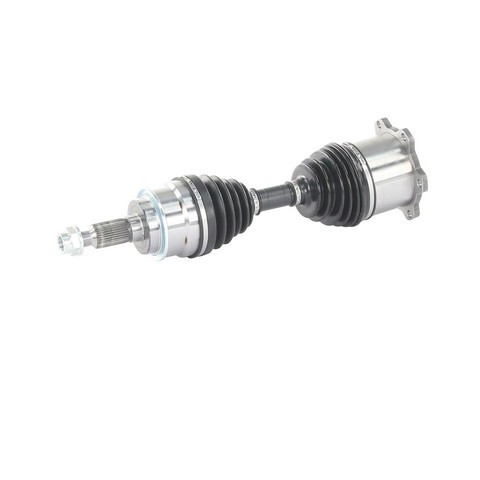

TrakMotive GM-8026 front CV axle shaft for the 1999-2010 Chevrolet Silverado 2500 and other vehicles carries drive torque to the front wheel. The TrakMotive CV axle shaft keeps the wheel driven while the suspension moves and the front wheels steer.
- Flange inboard joint and conventional outboard joint
- Neoprene boots on both the inboard and outboard joints
- Self-locking axle nut included, with an M24x2 thread and a 36 mm hex
- 33 splines on the outboard end
Quick facts
- Part: TrakMotive GM-8026 CV axle shaft
- Fits: 1999-2010 Chevrolet Silverado 2500 and other vehicles
- Position: Front
- Condition: New
A clicking noise on tight turns, grease thrown from a torn boot or vibration while driving can mean a worn joint. Before ordering, look over both boots with the engine off for tears or grease spray, since other front-end faults can sound alike. Both front axles are normally replaced together; this listing is one shaft, and the 1999-2010 Chevrolet Silverado 2500 takes two.
Fits
Made as a front CV axle shaft, it fits the 1999-2010 Chevrolet Silverado 2500, the 2001 GMC Sierra 1500 and the 2000-2013 Chevrolet Suburban 2500, along with a wide range of other Chevrolet, GMC and Hummer models. Open the "Vehicles it fits" section to check your exact model, year and engine.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Overall compressed length: 550 mm (21.65 in)
- Axle nut thread size: M24x2
- Axle nut hex size: 36 mm (1.43 in)
- Axle nut size: 22 mm high, 42 mm long
- Outboard splines: 33
Build and materials
- Inboard joint: flange
- Outboard joint: conventional
- Joint boots: neoprene, inboard and outboard
- Axle nut: self-locking hex, included
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and its self-locking axle nut.
Interchange: 40-16117 · 80-5091 · 66-1325 · 60-1325 · 60-1325HD · GM-2075 · 80-1516 · GC-8-8664 · MX-16117
410273 · 800273 · 179026 · 9421 · CV3898 · NCV3898 · NCV10240 · NCV10241 · NCV82072 · 70975 · 70975XD · 95091 · CV5384 · 15868120 · 20875738 · 26069242 · 1208 · 706735
This part cross-references / interchanges with the following part numbers:
410273, 800273, 40-16117, 80-5091, 179026, 66-1325, 60-1325, 60-1325HD, 9421, GM-2075, 80-1516, CV3898, NCV3898, NCV10240, NCV10241, NCV82072, 70975, 70975XD, 95091, CV5384, GC-8-8664, 15868120, 20875738, 26069242, 1208, GM-8026, MX-16117, 706735
Frequently Asked Questions
Does the TrakMotive GM-8026 fit the 2001 GMC Sierra 1500?
Yes, TrakMotive GM-8026 fits the 2001 GMC Sierra 1500 and the 1999-2010 Chevrolet Silverado 2500. Open the "Vehicles it fits" section to check other years and models.
Is the TrakMotive CV axle a replacement for 80-5091?
Yes. 80-5091 is on the interchange list for TrakMotive GM-8026, along with the other numbers printed at the bottom of this page.
Does this front CV axle shaft come with an ABS tone ring?
No, the ABS tone ring is not included. The listing is the shaft and its self-locking axle nut.
How can I tell if a front CV axle shaft is worn?
Watch for torn neoprene boots with grease spray, clicking when turning or vibration while driving. These signs can mean a worn joint, and a shop can confirm it.
How long is the TrakMotive GM-8026 axle shaft?
Its overall compressed length is 550 mm (21.65 in), with 33 splines on the outboard end.
