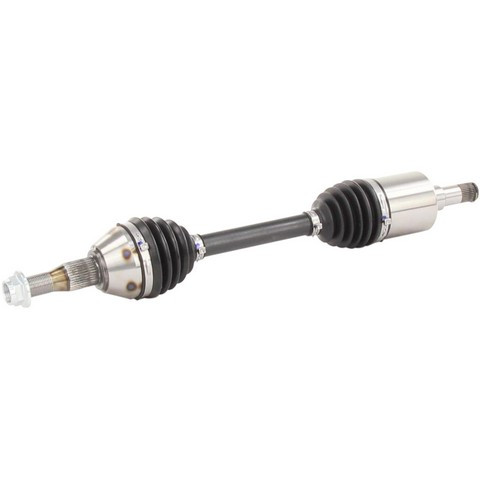

TrakMotive GM-8054HDX front right CV axle shaft for the 2000-2011 Chevrolet Impala and other vehicles sends drive torque to the wheel. This TrakMotive CV axle shaft has a male inboard joint and a conventional outboard joint.
- Extreme Climate CV axle line
- Special 7023B grease
- TPE boots engineered to maintain performance at extreme temperatures of +/- 50 degree C
- Self-locking axle nut included, M27x2 thread with a 33 mm hex
- 34 inboard splines and 33 outboard splines
Quick facts
- Part: TrakMotive GM-8054HDX CV axle shaft
- Fits: 2000-2011 Chevrolet Impala and other vehicles
- Position: Front right
- Condition: New
Clicking when you turn, vibration, or grease thrown from a split boot can mean the axle joint is wearing. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make a similar noise.
Fits
It is listed for a wide range of Chevrolet, Buick, Cadillac, Oldsmobile and Pontiac models, among them the 2005-2009 Buick LaCrosse and the 2005-2009 Buick Allure. If your car is not named here, look it up in the "Vehicles it fits" section. This listing is one shaft for the front right of the 2000-2011 Chevrolet Impala; the front left is a separate part, and both sides of that axle are normally replaced at the same time.
Specifications
Fit and size
- Position: front right
- Quantity: 1, for the front right side
- Overall compressed length: 632 mm (24.88 in)
- Axle nut: M27x2 thread, 33 mm (1.29 in) hex
- Inboard joint: male, 34 splines
- Outboard joint: conventional, 33 splines
Build and materials
- Boot material: thermoplastic (TPE)
- Axle nut: self-locking, included
- ABS tone ring: not included
- Condition: new
- Country of origin: China
In the box
One front right CV axle shaft with its axle nut.
Interchange: 40-16224 · 80-2528 · 66-1250HD · 60-1250HD · GM-6220 · 80-1805 · GC-8-8566 · AX-8620
410361 · 800361 · CV3336 · NCV10232XD · 70572 · 70572XD · 92479 · 92527 · 95849 · CV5377 · 1026 · 708620
This part cross-references / interchanges with the following part numbers:
410361, 800361, 40-16224, 80-2528, 66-1250HD, 60-1250HD, GM-6220, 80-1805, CV3336, NCV10232XD, 70572, 70572XD, 92479, 92527, 95849, CV5377, GC-8-8566, 1026, GM-8054HDX, 708620, AX-8620
Frequently Asked Questions
Will this CV axle fit a 2000-2011 Chevy Impala?
Yes. TrakMotive GM-8054HDX is a front right CV axle shaft for the 2000-2011 Chevrolet Impala. The front left side is a separate part.
Does the TrakMotive CV axle come with an axle nut?
Yes. TrakMotive GM-8054HDX includes a self-locking axle nut with an M27x2 thread and a 33 mm hex. The ABS tone ring is not included.
What temperature range is this Extreme Climate CV axle made for?
This axle uses special 7023B grease and TPE boots engineered to maintain performance at extreme temperatures of +/- 50 degree C.
What signs can mean this front right CV axle is wearing out?
Clicking while turning, vibration, or grease thrown from a split boot can mean a worn joint. A shop can confirm whether the axle is the cause.
How long is this CV axle shaft and how many splines does it have?
The overall compressed length is 632 mm (24.88 in). The male inboard joint has 34 splines and the conventional outboard joint has 33.
