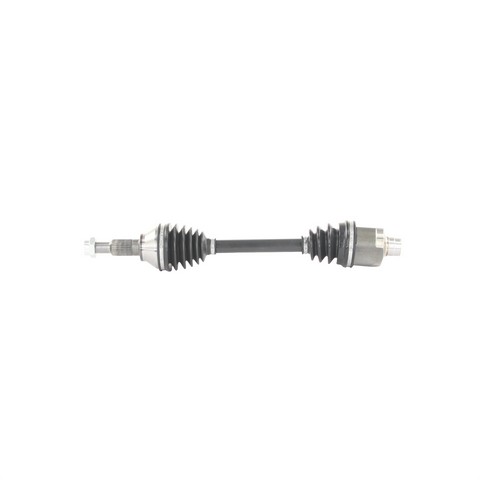

TrakMotive GM-8241 front CV axle shaft for the 2008-2010 Saturn Vue sends drive torque to the front wheel through its two CV joints. This TrakMotive CV axle has a female inboard joint and a conventional outboard joint.
- Neoprene boots on both the inboard and outboard joints
- 34 splines on the inboard end and 30 on the outboard end
- Self-locking axle nut with an M24x2 thread and a 36 mm hex
- Overall compressed length of 569 mm (22.4 in)
Quick facts
- Part: TrakMotive GM-8241 CV axle shaft
- Fits: 2008-2010 Saturn Vue
- Position: Front
- Condition: New
A torn boot with grease thrown around the wheel, a clicking noise on turns or a vibration when accelerating can mean this CV axle shaft is worn, though a worn wheel bearing or a bad engine mount can be behind similar noise and vibration, so find the cause before replacing it.
Fits
It is a direct-fit replacement for the 2008-2010 Saturn Vue, which takes two, one on each side of the front axle. This listing is one CV axle shaft, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Overall compressed length: 569 mm (22.4 in)
- Inboard splines: 34
- Outboard splines: 30
- Axle nut thread: M24x2
- Axle nut hex size: 36 mm (1.43 in)
Build and materials
- Inboard joint: female
- Outboard joint: conventional
- Joint boots: neoprene, inboard and outboard
- Axle nut: included, self-locking
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut.
Interchange: 66-1467 · 80-7536 · GC-8-8753 · AX-8480
NCV528039 · 179241 · NCV10025 · NCV10090 · 70319 · 15268074
This part cross-references / interchanges with the following part numbers:
NCV528039, 179241, 66-1467, 80-7536, NCV10025, NCV10090, 70319, GC-8-8753, 15268074, GM-8241, AX-8480
Frequently Asked Questions
Is the TrakMotive GM-8241 front CV axle shaft right for the 2008-2010 Saturn Vue?
Yes. TrakMotive GM-8241 is a front axle shaft for the 2008-2010 Saturn Vue, which takes two, one on each side of the front axle.
Does this TrakMotive CV axle shaft come with its axle nut?
Yes. TrakMotive GM-8241 includes a self-locking axle nut (M24x2 thread, 36 mm hex), but not an ABS tone ring.
How many splines does this CV axle have on each end?
The inboard end has 34 splines and a female joint. The outboard end has 30 splines and a conventional joint.
Why is grease coming out of the boot on my front CV axle?
A torn or split boot can let grease escape from the joint, and a clicking noise on tight turns is another sign of wear. Have a shop inspect the axle promptly.
Does GM-8241 interchange with 66-1467?
Yes. 66-1467 is one of the numbers TrakMotive GM-8241 replaces, along with 80-7536 and NCV10025.
