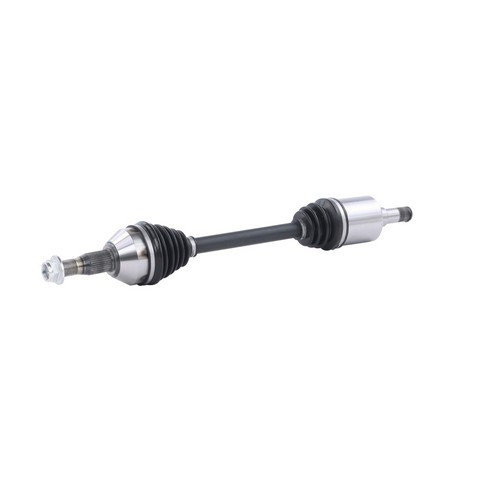

TrakMotive GM-8293 front left CV axle shaft for the 2011-2016 Chevrolet Cruze and other vehicles sends drive torque to the front left wheel. Its joints let the wheel steer and move with the suspension while the shaft keeps turning it.
- Self-locking axle nut included with the shaft
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 34 splines
- Conventional outboard joint with 33 splines
Quick facts
- Part: TrakMotive GM-8293 CV axle shaft
- Fits: the 2011-2016 Chevrolet Cruze and other vehicles
- Position: Front left
- Condition: New
A clicking or popping noise in turns, vibration under acceleration, or a torn boot with grease thrown around it can mean the joints are wearing, although other suspension or steering parts can make similar noises. With the engine off, look at the boots where you can see them, and find out what is causing the noise before you replace the shaft.
Fits
This CV axle replacement fits the front left of the 2011-2016 Chevrolet Cruze and the 2016 Chevrolet Cruze Limited.
Specifications
Fit and size
- Position: front left
- Quantity for the front left: 1
- Overall compressed length: 644 mm (25.35 in)
- Axle nut thread: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
Build and materials
- Condition: new
- ABS tone ring: not included
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and one axle nut. This listing is one shaft for the front left, which takes one; the front right is a separate part and is ordered separately.
Interchange: 66-1542 · 60-1542 · GC-8-8871
179293 · NCV10018 · 70137 · 40709008 · 13334704
This part cross-references / interchanges with the following part numbers:
179293, 66-1542, 60-1542, NCV10018, 70137, 40709008, GC-8-8871, 13334704, GM-8293
Frequently Asked Questions
Does the TrakMotive CV axle GM-8293 fit the 2011-2016 Chevrolet Cruze?
Yes. TrakMotive GM-8293 fits the front left of the 2011-2016 Chevrolet Cruze. The front right side is a separate part.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes. TrakMotive GM-8293 includes a self-locking axle nut with an M22x1.5 thread and a 32 mm hex. The ABS tone ring is not included.
How long is this front left CV axle shaft?
Its overall compressed length is 644 mm (25.35 in). The inboard end is a male joint with 34 splines, and the outboard end has 33 splines.
What signs can show a front left CV axle shaft with neoprene boots is wearing?
Clicking or popping in turns, vibration under acceleration, or a torn boot with grease thrown around it can mean the joint is wearing. A shop can confirm the shaft's condition.
Does TrakMotive GM-8293 replace the 66-1542 axle?
Yes. 66-1542 is one of the numbers this TrakMotive part replaces, along with 60-1542 and NCV10018.
