Front Left CV Axle Shaft for 2011-2015 Chevrolet Volt - TrakMotive GM-8347

$128.99

TrakMotive CV Axle Shaft GM-8347 - view 2

TrakMotive CV Axle Shaft GM-8347 - view 3

TrakMotive CV Axle Shaft GM-8347 - view 4

TrakMotive CV Axle Shaft GM-8347 - view 5

TrakMotive CV Axle Shaft GM-8347 - view 6

Part number: GM-8347

UPC: 844084033475

Condition: New

Weight: 11.90 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$128.99

Current Stock: 38

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

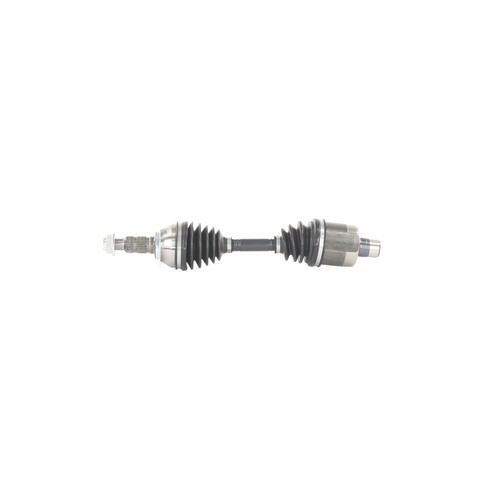

TrakMotive CV Axle Shaft P/N:GM-8347

$128.99

Description

TrakMotive GM-8347 front left CV axle shaft for the 2011-2015 Chevrolet Volt carries drive torque to the wheel while the suspension moves and the wheel turns. The TrakMotive CV axle replaces a front left shaft whose joint or boot has worn out.

Neoprene boots on the inboard and outboard joints
Self-locking axle nut with a 32 mm hex and M24x1.5 thread, included
Female inboard joint with 34 splines
Conventional outboard joint with 30 splines

Quick facts

Part: TrakMotive GM-8347 CV axle shaft
Fits: 2011-2015 Chevrolet Volt
Position: Front left
Condition: New

A clicking or popping noise when turning, grease flung from a torn boot, or vibration while driving can mean this axle is worn, though a wheel bearing or a tire can be behind the same signs, so find the cause before replacing it.

Fits

It fits the 2011-2015 Chevrolet Volt. This listing is one front left shaft; the front right shaft on the same axle is a separate part, and both are normally replaced together.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1
Overall compressed length: 508 mm (20 in)

Build and materials

Condition: new
ABS tone ring: not included
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front left CV axle shaft and one axle nut. The 2011-2015 Chevrolet Volt takes one on this side.

Interchange: 66-1573
179347 · NCV10310 · 22816826

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

179347, 66-1573, NCV10310, 22816826, GM-8347

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive GM-8347 right for a 2011-2015 Chevrolet Volt?

Yes. TrakMotive GM-8347 is the front left CV axle shaft for the 2011-2015 Chevrolet Volt, and that side takes one.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. TrakMotive GM-8347 includes one self-locking axle nut with a 32 mm hex and M24x1.5 thread. The ABS tone ring is not included.

How long is this CV axle shaft?

The overall compressed length is 508 mm (20 in). The inboard end has 34 splines and the outboard end has 30.

What should I look for on a torn neoprene CV boot?

Look for splits or grease thrown around the joint; a torn boot can let grease out and dirt in. A clicking noise when turning is another sign to have checked.

Does TrakMotive GM-8347 replace NCV10310?

Yes. NCV10310 is one of the numbers this axle replaces, along with 66-1573, 179347 and 22816826.
