Front Right CV Axle Shaft for 2016-2018 Chevrolet Malibu & More - TrakMotive GM-8398

$142.99

TrakMotive CV Axle Shaft GM-8398 - view 2

TrakMotive CV Axle Shaft GM-8398 - view 3

TrakMotive CV Axle Shaft GM-8398 - view 4

TrakMotive CV Axle Shaft GM-8398 - view 5

Part number: GM-8398

UPC: 844084042132

Condition: New

Weight: 16.80 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$142.99

Current Stock: 75

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

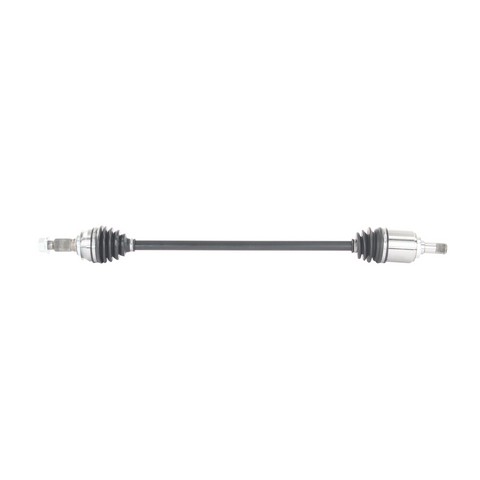

TrakMotive CV Axle Shaft P/N:GM-8398

$142.99

Description

TrakMotive GM-8398 front right CV axle shaft for the 2016-2018 Chevrolet Malibu and other vehicles carries engine torque to the wheel. This TrakMotive CV axle has joints that let the wheel steer and move with the suspension.

Axle nut included, with an M24x1.5 thread and a 32 mm hex
34 splines on the inboard end and 30 splines on the outboard end
Overall compressed length of 960 mm (37.8 in)
Male inboard joint and conventional outboard joint

Quick facts

Part: TrakMotive GM-8398 CV axle shaft
Fits: 2016-2018 Chevrolet Malibu and other vehicles
Position: Front right
Condition: New

A clicking noise on turns, vibration under acceleration or grease around a torn boot can mean a CV axle is worn. Before you replace this axle, rule out a worn wheel bearing or a tire problem, since either can make similar noises. The car takes one on each side of the axle.

Fits

It fits the 2016-2018 Chevrolet Malibu and the 2018-2019 Buick LaCrosse. This listing is one side, the front right; the front left is a separate part, and the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1 for this position
Overall compressed length: 960 mm (37.8 in)
Inboard splines: 34
Outboard splines: 30
Axle nut thread: M24x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Axle nut: included, standard locking type
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft with its axle nut.

Interchange: 179398 · NCV16003 · 84337416

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

179398, NCV16003, 84337416, GM-8398

Buyer's Q&A

Frequently Asked Questions

Is this front right CV axle shaft right for the 2016-2018 Chevy Malibu?

Yes. TrakMotive GM-8398 is the front right axle for the 2016-2018 Chevrolet Malibu, and it also fits the 2018-2019 Buick LaCrosse.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. The axle nut is included with GM-8398. The ABS tone ring is not included.

How long is this axle and how many splines does it have?

The overall compressed length is 960 mm (37.8 in). It has 34 splines on the inboard end and 30 on the outboard end.

What can a worn front right CV axle sound or feel like?

A clicking on turns, vibration when accelerating or grease thrown from a torn boot can be signs of wear. Have these checked promptly instead of driving on.

Does NCV16003 interchange with TrakMotive GM-8398?

Yes. NCV16003 is listed as an interchange number for TrakMotive GM-8398.
