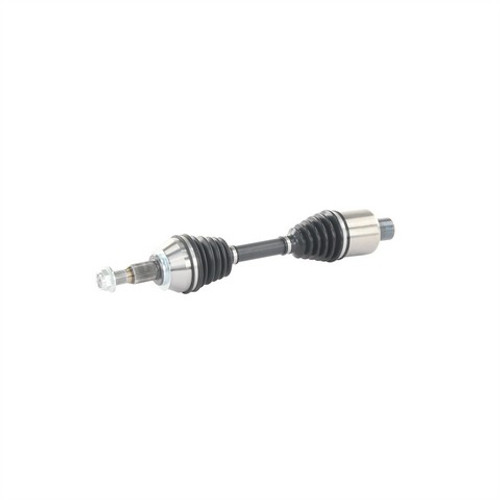

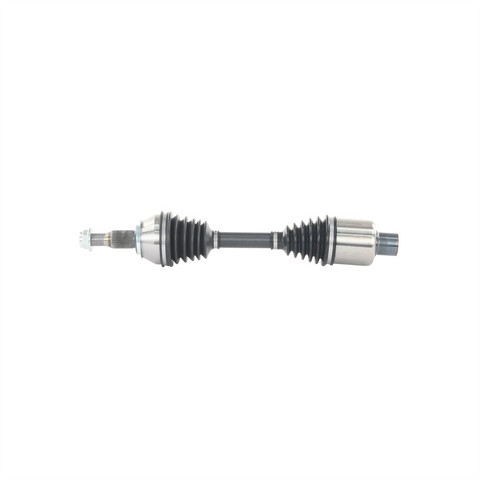

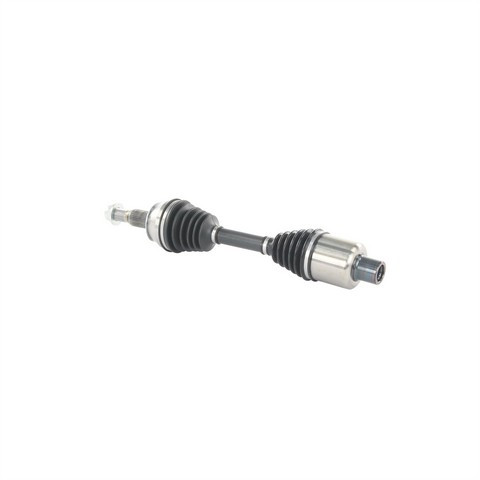

TrakMotive GM-8472 front right CV axle shaft for the 2017-2019 GMC Acadia and other vehicles carries drive torque to the wheel while the suspension moves. It replaces a worn or damaged axle on the front right side.
A clicking noise when turning, vibration under acceleration or grease thrown from a torn boot can mean the axle is wearing out. Before you replace this axle, rule out a wheel bearing or tire problem, since those can feel similar from the driver's seat.
It is a direct-fit replacement for the 2017-2019 GMC Acadia and the 2017-2019 Cadillac XT5.
Fit and size
Build and materials
One front right CV axle shaft with its axle nut. The front right position takes one, and the front left is a separate part ordered on its own. The ABS tone ring is not included.
This part cross-references / interchanges with the following part numbers:
Is this a CV axle replacement for the 2017-2019 GMC Acadia front right side?
Yes. TrakMotive GM-8472 is a front right CV axle shaft that fits the 2017-2019 GMC Acadia, and it also fits the 2017-2019 Cadillac XT5.
Does the TrakMotive CV axle come with the axle nut?
Yes. The TrakMotive GM-8472 listing includes the axle nut, a self-locking nut with an M27x2 thread and a 33 mm hex. The ABS tone ring is not included.
How long is the TrakMotive CV axle shaft when compressed?
This front right axle measures 583 mm (22.95 in) overall when compressed. It has 27 splines at the inboard end and 33 at the outboard end, which helps when comparing it with your old axle.
Can a torn boot on a front right CV axle mean it needs replacing?
Yes, it can. A torn boot lets grease out and dirt in, and clicking when turning or vibration under acceleration can also point to a worn joint. Have the axle checked promptly instead of driving on it.
Are the boots on this front right axle neoprene?
Yes. Both the inboard and outboard joint boots on TrakMotive GM-8472 are neoprene.
