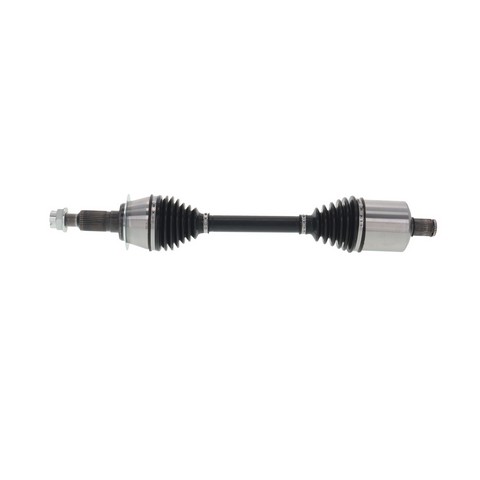

TrakMotive GM-8514 front CV axle shaft for the 2019-2022 Chevrolet Silverado 1500 and other vehicles carries drive torque to the front wheel and flexes with steering and suspension travel.
A clicking noise when turning, grease thrown from a torn boot, or vibration under acceleration can point to a worn CV axle. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make similar noise.
This front CV axle shaft fits the 2019-2022 Chevrolet Silverado 1500 and the 2019-2020 GMC Sierra 1500, which take two per vehicle. The listing is a single shaft, so order two and fit them together.
Fit and size
Build and materials
One CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.
Interchange: NCV10128 · 84793824
This part cross-references / interchanges with the following part numbers:
Does the TrakMotive CV axle GM-8514 fit the 2019-2020 GMC Sierra 1500?
Yes. TrakMotive GM-8514 is a front axle shaft listed for the 2019-2020 GMC Sierra 1500 and the 2019-2022 Chevrolet Silverado 1500, and each takes two.
Does the TrakMotive CV axle shaft come with the axle nut?
Yes. TrakMotive GM-8514 includes its self-locking axle nut (M24x2 thread, 36 mm hex). The ABS tone ring is not included.
How many splines are on each end of this front CV axle shaft?
The inboard end has 28 splines and the outboard end has 33 splines. Overall length is 627 mm compressed and 689 mm extended.
Can I check the boots on this CV axle myself?
Yes, with the engine off, look at the neoprene boots for cracks, tears or thrown grease. A shop can check the joints if you hear clicking when turning.
Does NCV10128 cross-reference to this axle shaft?
Yes. NCV10128 and 84793824 are listed as interchange numbers for TrakMotive GM-8514.
