Front CV Axle Shaft for 2022-2023 Chevrolet Bolt EUV & More - TrakMotive GM-86002

$164.99

TrakMotive CV Axle Shaft GM-86002 - view 2

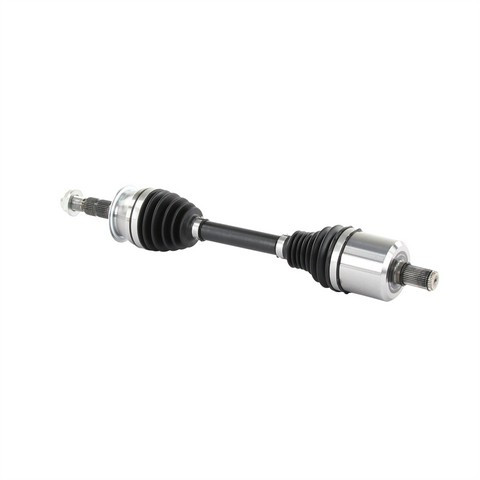

TrakMotive CV Axle Shaft GM-86002 - view 3

Part number: GM-86002

UPC: 840140507010

Condition: New

Weight: 13.50 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$164.99

Current Stock: 26

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:GM-86002

$164.99

Description

TrakMotive GM-86002 front CV axle shaft for the 2022-2023 Chevrolet Bolt EUV and other vehicles carries drive torque to the front wheel.

Self-locking axle nut included, with M22x1.5 thread and 32 mm hex head
Thermoplastic boots on both the inboard and outboard joints
Male inboard joint and conventional outboard joint, both with spline shaft connections

Quick facts

Part: TrakMotive GM-86002 CV axle shaft
Fits: 2022-2023 Chevrolet Bolt EUV and other vehicles
Position: Front
Condition: New

The joints flex with steering and suspension movement. A clicking noise on turns, vibration under acceleration or grease around a torn boot can mean an axle joint is worn. Before you replace the axle, rule out a worn tire, a wheel bearing or a suspension joint as the source of the noise or vibration.

Fits

This shaft fits the 2022-2023 Chevrolet Bolt EUV and the 2017-2021 Chevrolet Bolt EV. The 2022-2023 Chevrolet Bolt EUV takes two; this listing is one shaft, and the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: front
Quantity per vehicle: 2
Overall compressed length: 555 mm (21.83 in)
Overall extended length: 603 mm (23.72 in)
Inboard splines: 34
Outboard splines: 33

Build and materials

Condition: new
Grade type: Premium
ABS tone ring: not included
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Interchange: 42437963

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

42437963, GM-86002

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive CV axle GM-86002 right for the 2017-2021 Chevrolet Bolt EV?

Yes. TrakMotive GM-86002 is a front CV axle shaft for the 2017-2021 Chevrolet Bolt EV and the 2022-2023 Chevrolet Bolt EUV.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes. A self-locking axle nut is included, with an M22x1.5 thread and a 32 mm hex head. The ABS tone ring is not included.

How long is the GM-86002 axle shaft?

TrakMotive GM-86002 measures 555 mm (21.83 in) compressed and 603 mm (23.72 in) extended, with 34 inboard splines and 33 outboard splines.

Can a torn boot on a front CV axle mean the shaft needs replacing?

Yes, a torn boot, grease around the wheel, clicking on turns or vibration under acceleration can mean a worn joint. Have it checked and replaced promptly rather than keep driving on it.

Is 42437963 an interchange number for this axle shaft?

Yes. 42437963 is listed as an interchange number for the TrakMotive GM-86002 front CV axle shaft.
