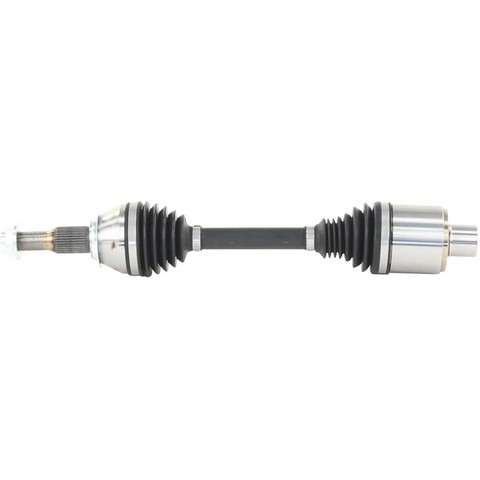

TrakMotive GM-86013 front right CV axle shaft for the 2019-2023 Cadillac XT4 carries drive torque to the wheel while the suspension moves. This TrakMotive CV axle is intended to replace a worn or damaged shaft on that side.
A clicking noise in turns, vibration under acceleration or grease around a split boot can mean the shaft or its joints are worn. A worn wheel bearing or an unbalanced tire can be behind similar noises and vibration too, so find the cause before buying.
This shaft is a direct-fit replacement for the 2019-2023 Cadillac XT4, which takes one on the front right. This listing is one shaft; the front left is a separate part, and the two sides of that axle are normally replaced together.
Fit and size
Build and materials
One front right CV axle shaft and one axle nut. The ABS tone ring is not included.
Interchange: NCV17017 · 84634632
This part cross-references / interchanges with the following part numbers:
Is the TrakMotive GM-86013 the right CV axle shaft for the 2019-2023 Cadillac XT4?
Yes. TrakMotive GM-86013 fits the 2019-2023 Cadillac XT4 on the front right side. The front left uses its own separate axle shaft.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes. This front right shaft comes with its self-locking axle nut, which has an M27x2 thread and a 36 mm hex. The ABS tone ring is not included.
How long is the TrakMotive GM-86013 front right axle shaft?
TrakMotive GM-86013 measures 573 mm (22.56 in) overall when compressed and 627 mm (24.67 in) when extended.
Does TrakMotive GM-86013 replace NCV17017?
Yes. NCV17017 is one of the other-brand numbers listed as interchanging with TrakMotive GM-86013.
Can a clicking noise in turns mean a front CV axle shaft is worn?
It can. Clicking in turns or vibration while accelerating can mean a worn axle shaft. Have it checked promptly rather than driving on it.
