Rear Left CV Axle Shaft for 2020-2022 Cadillac CT5 - TrakMotive GM-86054

$185.99

TrakMotive CV Axle Shaft GM-86054 - view 2

TrakMotive CV Axle Shaft GM-86054 - view 3

Part number: GM-86054

UPC: 840140519020

Condition: New

Weight: 17.50 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$185.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

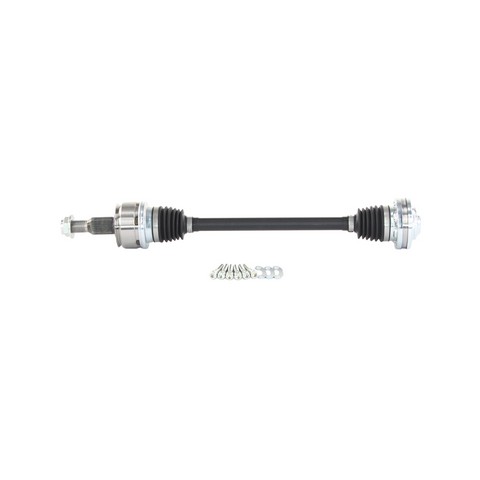

TrakMotive CV Axle Shaft P/N:GM-86054

$185.99

Description

TrakMotive GM-86054 rear left CV axle shaft for the 2020-2022 Cadillac CT5 carries drive torque to the wheel as the suspension moves.

Bolt-on inboard joint with six M10x1.5 Allen-head bolts
Conventional outboard joint with 33 splines
Thermoplastic boots on the inboard and outboard joints
Self-locking axle nut with M27x2 thread and a 36 mm hex, included

Quick facts

Part: TrakMotive GM-86054 CV axle shaft
Fits: 2020-2022 Cadillac CT5
Position: Rear left
Condition: New

A worn TrakMotive CV axle can show up as clicking when turning, grease thrown around a torn boot, or vibration under acceleration. Before you replace the axle, rule out a worn wheel bearing or a tire problem, since those can feel and sound similar.

Fits

This axle fits the 2020-2022 Cadillac CT5. The listing is one axle for the rear left side, which takes one; the rear right is its own part, ordered separately, and the two are normally replaced together.

Specifications

Fit and size

Position: rear left
Quantity per application: 1
Overall compressed length: 692 mm (27.25 in)
Overall extended length: 767 mm (30.19 in)
Outboard splines: 33
Inboard bolts: 6, M10x1.5, 60 mm (2.375 in) long, 8 mm Allen head
Axle nut: M27x2 thread, 36 mm (1.375 in) hex

Build and materials

Inboard joint: bolt-on, 6 bolt holes
Outboard joint: conventional
Boot material: thermoplastic, both joints
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut. The ABS tone ring is not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

GM-86054

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive GM-86054 fit the 2020-2022 Cadillac CT5?

Yes. TrakMotive GM-86054 is a rear left CV axle shaft for the 2020-2022 Cadillac CT5; the rear right side is a separate part.

Is this TrakMotive CV axle shaft for the left or right side?

This TrakMotive axle is the rear left. The rear right takes its own axle, ordered separately, and this listing is one axle.

Does the TrakMotive GM-86054 come with the axle nut?

Yes. A self-locking axle nut with M27x2 thread and a 36 mm hex is included. The ABS tone ring is not included.

How long is this rear left CV axle shaft?

TrakMotive GM-86054 measures 692 mm (27.25 in) compressed and 767 mm (30.19 in) extended.

What warranty covers the TrakMotive GM-86054?

TrakMotive covers the GM-86054 CV axle shaft with a limited lifetime warranty.
