Rear Right CV Axle Shaft for 2018-2023 Chevrolet Traverse & More - TrakMotive GM-86061

$150.99

TrakMotive CV Axle Shaft GM-86061 - view 2

TrakMotive CV Axle Shaft GM-86061 - view 3

TrakMotive CV Axle Shaft GM-86061 - view 4

TrakMotive CV Axle Shaft GM-86061 - view 5

TrakMotive CV Axle Shaft GM-86061 - view 6

Part number: GM-86061

UPC: 840140521443

Condition: New

Weight: 16.70 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$150.99

Current Stock: 21

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:GM-86061

$150.99

Description

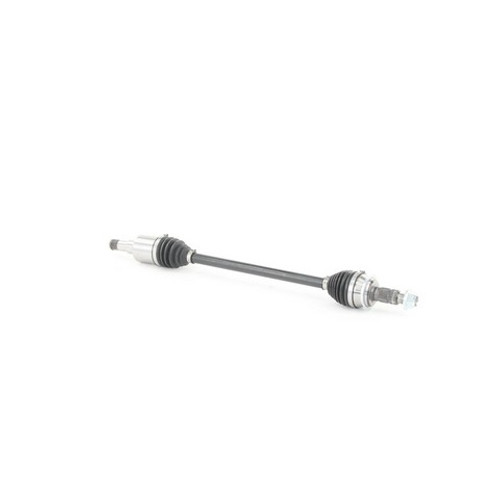

TrakMotive GM-86061 rear right CV axle shaft for the 2018-2023 Chevrolet Traverse and other vehicles carries drive torque to the wheel. Its joints let it keep turning as the suspension moves.

Self-locking axle nut included, with a 36 mm hex and M27x2 thread
Thermoplastic boots on the inboard and outboard joints
34 splines on the inboard end and 33 on the outboard end
Male inboard joint and conventional outboard joint, each with a spline shaft connection

Quick facts

Part: TrakMotive GM-86061 CV axle shaft
Fits: 2018-2023 Chevrolet Traverse and other vehicles
Position: Rear right
Condition: New

A clicking noise on turns, vibration, or grease thrown from a split boot can mean a worn CV axle shaft. A worn wheel bearing, a tire problem or a loose suspension part can cause similar signs, so find the cause before buying. The rear axle takes one on each side; this listing is the rear right, and the rear left is ordered separately.

Fits

It is a CV axle shaft for the 2018-2023 Buick Enclave, the 2018-2023 Chevrolet Traverse and the 2019 Chevrolet Blazer.

Specifications

Fit and size

Position: rear right
Quantity for this position: 1
Overall compressed length: 823 mm (32.375 in)
Overall extended length: 870 mm (34.25 in)
Inboard splines: 34
Outboard splines: 33
Axle nut: M27x2 thread, 36 mm (1.38 in) hex

Build and materials

Condition: new
Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Boot material: thermoplastic (both joints)
Axle nut: self-locking, included
ABS tone ring: not included
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One rear right CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.

Interchange: NCV16016 · NCV16017

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV16016, NCV16017, GM-86061

Buyer's Q&A

Frequently Asked Questions

Is this CV axle shaft right for the 2019 Chevrolet Blazer?

Yes. TrakMotive GM-86061 fits the 2019 Chevrolet Blazer as the rear right CV axle shaft. It also fits the 2018-2023 Chevrolet Traverse and the 2018-2023 Buick Enclave.

Is this TrakMotive CV axle for the left or right side?

TrakMotive GM-86061 is the rear right CV axle shaft. The rear left is a separate part that is ordered on its own.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. It includes the self-locking axle nut, which has a 36 mm hex and an M27x2 thread. The ABS tone ring is not included.

How many splines does this rear right axle have?

This CV axle shaft has 34 splines on the male inboard joint and 33 on the conventional outboard joint. Compressed, it measures 823 mm (32.375 in).

How can I tell if a CV axle boot is damaged?

With the engine off, look for a split thermoplastic boot or grease around the joint. Clicking on turns or vibration can also mean a worn joint, and a shop can confirm it.

Reviews

No reviews yet — be the first to review this product.

Write a Review

Rear Right CV Axle Shaft for 2018-2023 Chevrolet Traverse & More - TrakMotive GM-86061
