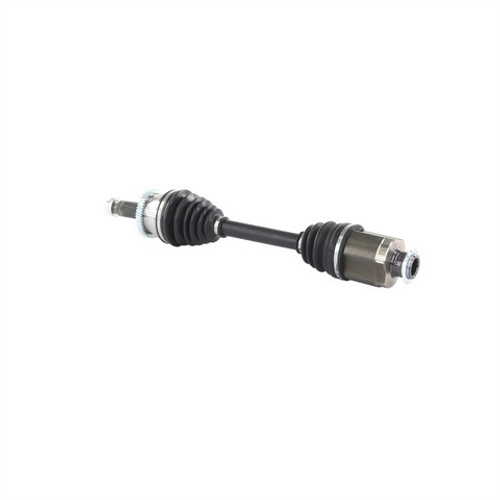

TrakMotive HO-8236 front right CV axle shaft for the 1994-1996 Honda Passport and other vehicles carries drive torque from the transmission to the wheel. This TrakMotive CV axle shaft lets the wheel turn and move with the suspension while power keeps flowing.
- Neoprene boots on both the inboard and outboard joints
- Male joints at both ends, each with 17 splines
- Overall compressed length of 551 mm (21.69 in)
- Axle bolt with M8x1.25 thread, 46 mm long and 13 mm hex size
Quick facts
- Part: TrakMotive HO-8236 CV axle shaft
- Fits: 1994-1996 Honda Passport and other vehicles
- Position: Front right
- Condition: New
A clicking or popping noise when turning, vibration under acceleration or a torn boot with grease thrown around it can mean the shaft or its joints are wearing. Before you replace this shaft, rule out a worn wheel bearing or a tire problem, which can cause similar noise or vibration.
Fits
This front right CV axle shaft is a direct-fit replacement for the 1994-1996 Honda Passport, the 1991-1996 Isuzu Rodeo and the 1988-1995 Isuzu Pickup, and each takes one on this side. This listing is one shaft for the front right; the front left is a separate part, and the other side of that axle is normally done at the same time. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Overall compressed length: 551 mm (21.69 in)
- Inboard splines: 17
- Outboard splines: 17
- Axle bolt: M8x1.25 thread, 46 mm long, 13 mm hex
Build and materials
- Inboard and outboard joints: male
- Joint boot material: neoprene (inboard and outboard)
- ABS tone ring: not included
- Grade type: Premium
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut is not included; plan on a new one, since the old nut may not be reusable.
Interchange: 80-3332 · 60-4081 · IZ-9204 · 80-3207 · IZ-8-8504 · MX-19204 · AX-2866
189236 · 7754 · 93332 · 96582 · 40725002 · 8941733043
This part cross-references / interchanges with the following part numbers:
80-3332, 189236, 60-4081, 7754, IZ-9204, 80-3207, 93332, 96582, 40725002, IZ-8-8504, 8941733043, HO-8236, MX-19204, AX-2866
Frequently Asked Questions
Does the TrakMotive HO-8236 fit the 1994-1996 Honda Passport?
Yes. TrakMotive HO-8236 is the front right axle for the 1994-1996 Honda Passport and also fits the 1991-1996 Isuzu Rodeo. Use the "Vehicles it fits" section for other models.
Is the axle nut included with this front right CV axle shaft?
No. The axle nut is not included with this shaft, and neither is the ABS tone ring.
How many splines does the TrakMotive CV axle HO-8236 have?
The TrakMotive HO-8236 has 17 splines on each male joint, inboard and outboard. Its overall compressed length is 551 mm (21.69 in).
What are the signs of a worn front right CV axle shaft?
A clicking or popping noise in turns, vibration under acceleration or a torn boot with leaking grease can mean the shaft or its joints are wearing. A shop can confirm the cause.
What are the joint boots on this CV axle shaft made of?
The inboard and outboard joint boots are neoprene. TrakMotive covers the shaft with a limited lifetime warranty.
