Front Right CV Axle Shaft for 2014-2017 Acura RLX & More - TrakMotive HO-8247

$145.99

TrakMotive CV Axle Shaft HO-8247 - view 2

TrakMotive CV Axle Shaft HO-8247 - view 3

Part number: HO-8247

UPC: 844084042477

Condition: New

Weight: 14.60 LBS

Item Package Quantity: 1

$145.99

Current Stock: 14

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

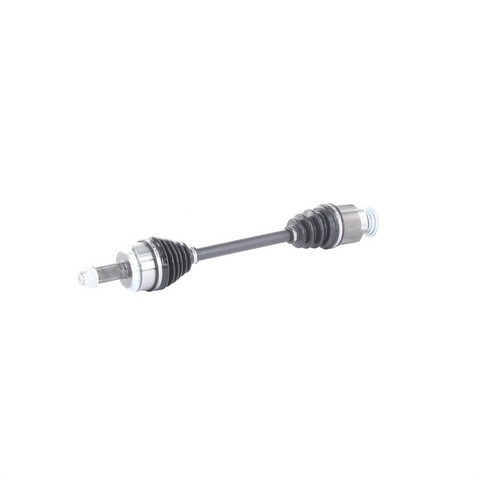

TrakMotive CV Axle Shaft P/N:HO-8247

$145.99

Description

TrakMotive HO-8247 front right CV axle shaft for the 2014-2017 Acura RLX and other vehicles carries engine torque from the transmission to the front right wheel. A joint at each end lets the shaft keep turning the wheel as the suspension moves and the wheel steers.

Neoprene boots on the inboard and outboard joints
Conventional outboard joint with 30 splines
Female inboard joint with 29-2T splines
Axle nut included, with stake locking, M26x1.5 thread and a 35 mm hex

Quick facts

Part: TrakMotive HO-8247 CV axle shaft
Fits: the 2014-2017 Acura RLX and other vehicles
Position: Front right
Condition: New

A clicking noise on turns, vibration at speed or grease thrown around the wheel well can mean a worn axle shaft or a torn boot. With the engine off, look at the boots for splits before ordering, since a wheel bearing or tire can make similar noises. Axle shafts are normally replaced in pairs; this listing is one shaft for the front right.

Fits

This CV axle shaft fits the 2014-2017 Acura RLX and the 2009-2012 Acura TL.

Specifications

Fit and size

Position: Front right
Quantity for the front right position: 1
Overall compressed length: 633 mm (24.92 in)
Inboard splines: 29-2T
Outboard splines: 30
Axle nut thread: M26x1.5
Axle nut hex size: 35 mm

Build and materials

Inboard joint: female
Outboard joint: conventional
Joint boot material: neoprene, both joints
Axle nut: included, stake locking
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft with its axle nut. The front right position takes one shaft; the front left is a separate part.

Interchange: 66-4266 · 60-4266 · 80-1058
189247 · 94479 · 40701017 · 40701025 · 44305TK5A00 · HO10580

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

189247, 66-4266, 60-4266, 80-1058, 94479, 40701017, 40701025, 44305TK5A00, HO10580, HO-8247

Buyer's Q&A

Frequently Asked Questions

Does this TrakMotive CV axle fit the 2009-2012 Acura TL?

Yes. TrakMotive HO-8247 is made for the front right position on the 2009-2012 Acura TL, and the front left is a separate part.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. The axle nut is included, with an M26x1.5 thread, a 35 mm hex and stake locking. The ABS tone ring is not included.

How long is the HO-8247 axle shaft and what splines does it have?

TrakMotive HO-8247 has an overall compressed length of 633 mm (24.92 in), with 29-2T splines at the female inboard end and 30 at the outboard end.

How can I tell if this front right axle shaft is wearing out?

A clicking noise on turns, vibration while driving or grease thrown around the wheel well can be signs. A shop can road-test the noise to confirm.

What warranty comes with the TrakMotive HO-8247?

TrakMotive backs the HO-8247 axle shaft with a limited lifetime warranty.
