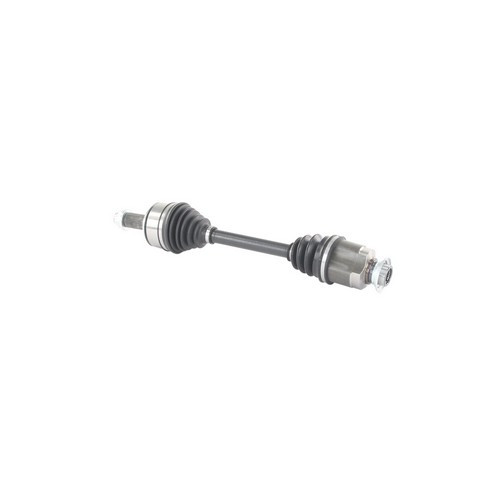

Front Right CV Axle Shaft for 2007-2014 Honda CR-V - TrakMotive HO-8476

$142.99

TrakMotive CV Axle Shaft HO-8476 - view 2

TrakMotive CV Axle Shaft HO-8476 - view 3

TrakMotive CV Axle Shaft HO-8476 - view 4

TrakMotive CV Axle Shaft HO-8476 - view 5

TrakMotive CV Axle Shaft HO-8476 - view 6

Part number: HO-8476

UPC: 844084044761

Condition: New

Weight: 14.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$142.99

Current Stock: 105

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:HO-8476

$142.99

Description

TrakMotive HO-8476 front right CV axle shaft for the 2007-2014 Honda CR-V carries drive torque from the transmission to the wheel. The TrakMotive CV axle flexes at its joints so the wheel can steer and move with the suspension.

Female inboard joint with 27-2T inboard splines
Conventional outboard joint with 30 outboard splines
Neoprene boots on both the inboard and outboard joints
Axle nut included, with M26x1.5 thread, 35 mm hex and stake locking

Quick facts

Part: TrakMotive HO-8476 CV axle shaft
Fits: 2007-2014 Honda CR-V
Position: Front right
Condition: New

A clicking noise in turns, vibration while driving or a torn boot with grease thrown around it can mean the axle is worn. A worn wheel bearing, a tired motor mount or tire trouble can be behind similar vibration too, so find the cause before buying.

Fits

As a CV axle replacement for the 2007-2014 Honda CR-V, it fits the front right side. This listing is one axle; the 2007-2014 Honda CR-V takes one on that side, and the front left is a separate part ordered separately.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1
Overall compressed length: 564 mm (22.2 in)
Inboard splines: 27-2T
Outboard splines: 30
Axle nut thread size: M26x1.5
Axle nut hex size: 35 mm (1.33 in)

Build and materials

Inboard joint: female
Outboard joint: conventional
Joint boot material: neoprene (inboard and outboard)
Axle nut: included, stake locking
ABS tone ring: not included
Grade: Premium
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The ABS tone ring is not included.

Interchange: DT-123281
189476 · NCV36100 · 40721147 · 44305T0AA00 · 44305T0AA01 · 44305T0AA02

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

189476, DT-123281, DT123281, NCV36100, 40721147, 44305T0AA00, 44305T0AA01, 44305T0AA02, HO-8476

Buyer's Q&A

Frequently Asked Questions

Is this CV shaft right for the 2007-2014 Honda CR-V?

Yes. TrakMotive HO-8476 fits the 2007-2014 Honda CR-V on the front right side. The front left axle is a separate part.

Does this front right CV axle come with its axle nut?

Yes. The axle nut is included, with an M26x1.5 thread and a 35 mm hex. The ABS tone ring is not included.

What are the spline counts on the TrakMotive CV axle shaft?

TrakMotive HO-8476 has 27-2T splines on the inboard end and 30 splines on the outboard end, with a female inboard joint and a conventional outboard joint.

How can I tell if the boot or joint on a front right CV axle is going bad?

A torn neoprene boot with grease flung around it, a clicking noise in turns or vibration while driving can point to a worn axle. A shop can confirm it.

What is the compressed length of this front right CV axle?

TrakMotive HO-8476 measures 564 mm (22.2 in) in overall compressed length.
