Front Left CV Axle Shaft for 2014-2015 Honda Civic - TrakMotive HO-8522

$157.99

TrakMotive CV Axle Shaft HO-8522 - view 2

TrakMotive CV Axle Shaft HO-8522 - view 3

TrakMotive CV Axle Shaft HO-8522 - view 4

TrakMotive CV Axle Shaft HO-8522 - view 5

Part number: HO-8522

UPC: 844084026002

Condition: New

Weight: 12.00 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$157.99

Current Stock: 171

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

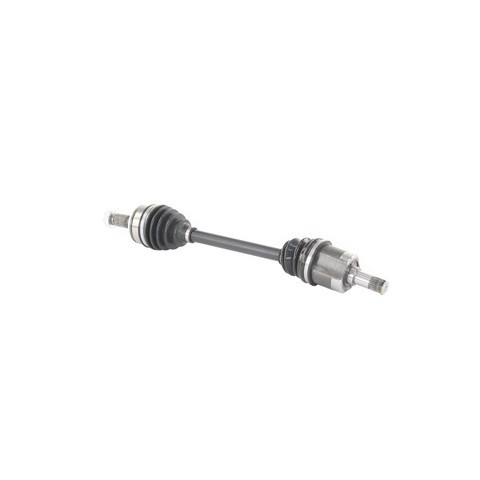

TrakMotive CV Axle Shaft P/N:HO-8522

$157.99

Description

TrakMotive HO-8522 front left CV axle shaft for the 2014-2015 Honda Civic carries drive torque from the transmission to the front left wheel. Joints at each end let this TrakMotive CV axle keep driving the wheel through suspension travel and steering.

Axle nut included, with stake locking
Neoprene boots on the inboard and outboard joints
Male inboard joint for the transmission side
Conventional outboard joint for the wheel side

Quick facts

Part: TrakMotive HO-8522 CV axle shaft
Fits: 2014-2015 Honda Civic
Position: Front left
Condition: New

A clicking noise on tight turns, vibration under acceleration or a split boot with thrown grease can mean a CV axle shaft is worn. If a worn shaft is the cause, this one replaces it. With the engine off, check the boots for splits or thrown grease; a shop can sort out clicking and vibration on the road. Both front CV axle shafts are normally replaced together, and this listing is one for the front left; the front right is ordered separately.

Fits

This is a direct-fit replacement CV axle for the 2014-2015 Honda Civic, which takes one on the front left.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1
Overall compressed length: 617 mm (24.29 in)
Axle nut thread size: M22x1.5
Axle nut hex size: 32 mm (1.25 in)
Inboard splines: 25
Outboard splines: 26

Build and materials

Inboard joint: male
Outboard joint: conventional
Boot material: neoprene, inboard and outboard
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The ABS tone ring is not included.

Interchange: NCV36162 · 40721159

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV36162, 40721159, HO-8522

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive HO-8522 fit the 2014-2015 Honda Civic?

Yes, TrakMotive HO-8522 is the front left CV axle shaft for the 2014-2015 Honda Civic, whichever engine the car has, and the car takes one on this side.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes, the axle nut is included, a 32 mm hex nut with stake locking, but the ABS tone ring is not included.

What size is the axle nut on this front left CV axle shaft?

TrakMotive HO-8522 uses an axle nut with an M22x1.5 thread and a 32 mm hex (1.25 in). Its overall compressed length is 617 mm (24.29 in).

What does a damaged CV axle boot look like?

A damaged boot shows a split or crack, often with grease thrown around it. A clicking noise on tight turns can go with a worn joint, and a shop can check that.

Can I use TrakMotive HO-8522 in place of NCV36162?

Yes, NCV36162 is an interchange number for TrakMotive HO-8522, a front left CV axle shaft.
