Front Right CV Axle Shaft for 2007-2008 Honda Fit - TrakMotive HO-8593

$147.99

Vehicles this part fits

    Part number: HO-8593
    UPC: 844084045164
    Condition: New
    Weight: 15.20 LBS
    Sold as: 1 for the front right
    Part Has Core (Y/N): N
    $147.99
    Adding to cart… The item has been added

    Have questions?

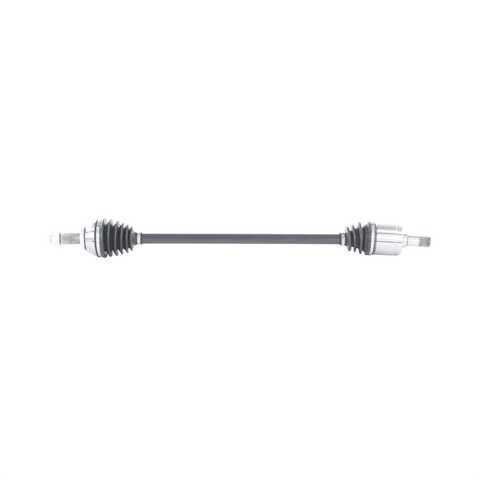

    TrakMotive CV Axle Shaft P/N:HO-8593
    TrakMotive CV Axle Shaft P/N:HO-8593
    $147.99
    $147.99

    TrakMotive HO-8593 front right CV axle shaft for the 2007-2008 Honda Fit carries engine torque from the transmission to the wheel. The TrakMotive CV axle has neoprene boots on both joints.

    • Neoprene boots on the inboard and outboard joints
    • Male inboard joint with 25 splines
    • Conventional outboard joint with 26 splines

    Quick facts

    • Part: TrakMotive HO-8593 CV axle shaft
    • Fits: 2007-2008 Honda Fit
    • Position: Front right

    Clicking when you turn, vibration while driving or a torn boot with grease thrown around the joint can mean this axle is worn, though a worn wheel bearing or an out-of-balance tire can produce similar noise and vibration, so rule those out first.

    Fits

    It is a direct-fit CV axle replacement for the 2007-2008 Honda Fit, and ABS axles fit non-ABS applications unless otherwise noted. This listing is one front right shaft, and the front left shaft on that axle is a separate part usually replaced at the same time; the 2007-2008 Honda Fit takes one per side.

    Specifications

    Fit and size

    • Position: front right
    • Quantity: 1 for the front right
    • Overall compressed length: 898 mm (35.35 in)
    • Inboard splines: 25
    • Outboard splines: 26
    • Axle nut thread size: M22x1.5
    • Axle nut hex size: 32 mm (1.25 in)

    Build and materials

    • Inboard joint type: male
    • Outboard joint type: conventional
    • Axle nut locking type: stake
    • Boot material: neoprene (both joints)
    • ABS tone ring: not included
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV axle shaft and one axle nut.

    Interchange: 66-4249
    NCV36593 · HO10565

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    66-4249, NCV36593, HO10565, HO-8593

    Frequently Asked Questions

    Is the TrakMotive HO-8593 axle a CV axle replacement for the 2007 Honda Fit?

    Yes. TrakMotive HO-8593 is a front right CV axle shaft for the 2007-2008 Honda Fit, so the 2007 model year is covered.

    Does the TrakMotive CV axle shaft come with an axle nut?

    Yes. This front right CV axle shaft includes its axle nut, which has an M22x1.5 thread, a 32 mm hex and stake locking. The ABS tone ring is not included.

    How long is this front right CV axle shaft?

    This shaft measures 898 mm (35.35 in) overall compressed length. The inboard end has 25 splines and the outboard end has 26.

    How can I tell if the boots on this CV axle need attention?

    With the engine off, look at the neoprene boots for cracks, tears or grease where they are visible without lifting the car; a shop can inspect them fully. A clicking noise when turning is another sign.

    Does TrakMotive HO-8593 replace NCV36593?

    Yes. NCV36593 is one of the numbers TrakMotive HO-8593 replaces, along with 66-4249 and HO10565.
