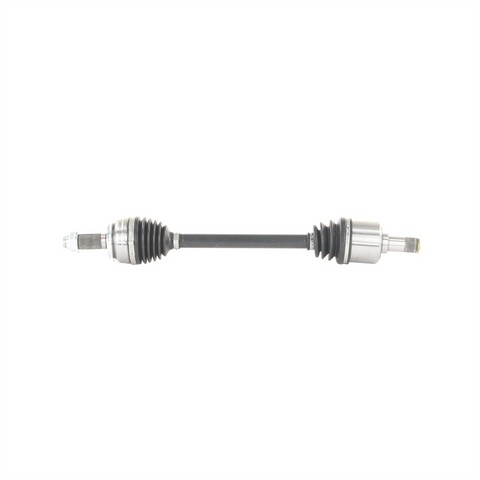

TrakMotive HO-86028 front left CV axle shaft for the 2009-2010 Acura RL carries drive torque to the front left wheel. This TrakMotive CV axle has a joint at each end that lets the shaft flex as the suspension moves and the wheel steers.
- Conventional outboard joint with 30 splines
- Male inboard joint with 29 splines
- Compressed length of 676 mm (26.63 in), extended length of 716 mm (28.19 in)
- Axle nut thread of M26x1.5 with a 35 mm hex
Quick facts
- Part: TrakMotive HO-86028 CV axle shaft
- Fits: 2009-2010 Acura RL
- Position: Front left
- Condition: New
A clicking or popping noise on turns, vibration while driving, or grease leaking from a torn boot can mean the axle is worn. Before replacing it, look for grease spray inside the wheel well with the engine off, and have a shop confirm the cause, since a noise on turns can also come from other parts.
Fits
It is a direct-fit replacement for the 2009-2010 Acura RL, which takes one front left axle shaft; the front right axle is ordered separately.
Specifications
Fit and size
- Position: Front left
- Quantity for this side: 1
- Overall length: 676 mm (26.63 in) compressed, 716 mm (28.19 in) extended
- Splines: 29 inboard, 30 outboard
- Axle nut: M26x1.5 thread, 35 mm hex
Build and materials
- Joints: male inboard, conventional outboard
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One front left CV axle shaft. The axle nut is not included, so plan on a new one, since the old nut may not be reusable.
Frequently Asked Questions
Is the TrakMotive CV axle shaft HO-86028 the right one for a 2009-2010 Acura RL?
Yes. TrakMotive HO-86028 fits the 2009-2010 Acura RL on the front left side. The front right axle is a separate part.
Does the TrakMotive HO-86028 come with an axle nut?
No. The axle nut is not included. It uses an M26x1.5 thread with a 35 mm hex, so have a new nut on hand.
How long is this front left CV axle shaft?
It measures 676 mm (26.63 in) compressed and 716 mm (28.19 in) extended. It has 29 inboard splines and 30 outboard splines.
Does this axle shaft include an ABS tone ring?
No. The ABS tone ring is not included with this front left axle shaft.
What warranty comes with the TrakMotive HO-86028 axle?
TrakMotive backs the HO-86028 with a limited lifetime warranty.
