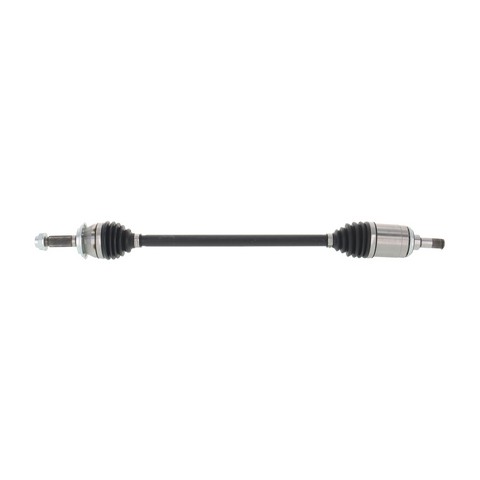

TrakMotive CV Axle Shaft P/N:HO-86056

Be the first to review this product

$122.99

MPN: HO-86056

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:HO-86056

$122.99

Description

Keep power flowing smoothly to the rear right wheel of your Honda with the TrakMotive CV Axle Shaft HO-86056. This pre-assembled axle installs as a direct-fit replacement for the 2019-2022 Honda HR-V [All], filling the rear right position. A CV axle transmits torque from the transaxle to the wheel hub while its constant-velocity joints accommodate suspension travel.

Axle nut included: M22x1.5 thread, 32 mm (1.25 in) hex, stake-type locking.
Thermoplastic boots: both the inboard and outboard joint boots are thermoplastic to seal the joints and retain grease.
Splines: 20-spline male inboard joint and 23-spline conventional outboard joint.
Lengths: 31.69 in (805 mm) compressed and 33.88 in (861 mm) extended.
Backed by a Limited Lifetime Warranty from an ISO 9001:2008 and TS 16949:2009 certified company.

This axle ships without an ABS tone ring. Clicking during turns, vibration, or grease slung around the wheel from a torn boot can be signs a CV axle may need replacing; diagnose the cause before replacing. Country of origin: China. Manufacturer part number HO-86056.

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

HO-86056

Frequently Asked Questions

What vehicle does this CV axle fit?

It's a direct-fit replacement for the 2019-2022 Honda HR-V (All engines) in the rear right position. Check the Buyer's Guide tab to confirm fit for your vehicle.

Is the axle nut included?

Yes. It includes a stake-type axle nut with an M22x1.5 thread and a 32 mm (1.25 in) hex.

Does this axle include an ABS tone ring?

No. This axle ships without an ABS tone ring (tooth count 0).

What are the CV joint boots made of?

Both the inboard and outboard joint boots are thermoplastic.

How do I know if my CV axle needs replacing?

Clicking noises during turns, vibration, or grease thrown around the wheel from a torn boot can be signs; diagnose the underlying cause before replacing.
