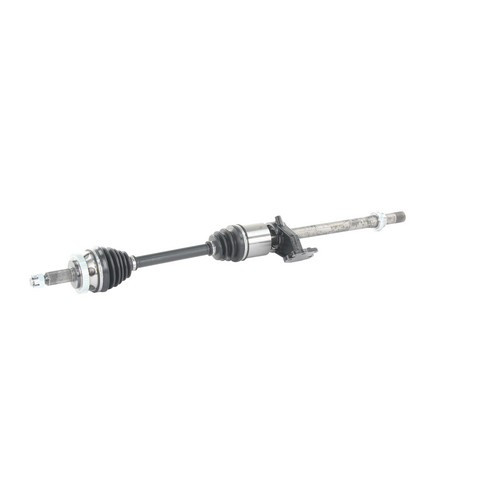

TrakMotive HY-8104 front right CV axle shaft for the 2006-2010 Hyundai Sonata and other vehicles carries drive torque to the front right wheel. Its joints flex with the suspension and steering as the wheel moves.
- Toothed ABS tone ring with 47 teeth is included on the shaft
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint and conventional outboard joint
- Axle nut included, locked with a cotter pin
Quick facts
- Part: TrakMotive HY-8104 CV axle shaft
- Fits: 2006-2010 Hyundai Sonata and other vehicles
- Position: Front right
- Condition: New
Clicking when turning, vibration, or grease thrown from a torn boot can be signs of a worn axle. A worn wheel bearing, a loose engine mount or a tire problem can be behind similar signs, so find the cause before buying. The car takes one shaft on each side of the front axle; this listing is the front right, and the front left is ordered separately.
Fits
This is a CV axle replacement for the 2006-2010 Hyundai Sonata and the 2006-2010 Hyundai Azera. ABS axles fit non-ABS applications unless otherwise noted.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Overall compressed length: 979 mm (38.54 in)
- Inboard splines: 28
- Outboard splines: 30
- Axle nut: 30 mm hex, M22x1.5 thread
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- Boot material: neoprene (inboard and outboard)
- ABS sensor ring: included, toothed, 47 teeth
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut.
Interchange: 66-3495 · 60-3495 · 60-3710 · HY-2274A · 80-9325 · 80-9326 · HY-8-8583A · AX-88259
199104 · NCV37008 · 37325 · 92727 · 40723038 · 495000A460 · 495003L850 · 495003L950 · 5000A460 · 5003L850 · HY10527 · 7088259 · 7088279
This part cross-references / interchanges with the following part numbers:
199104, 66-3495, 60-3495, 60-3710, HY-2274A, 80-9325, 80-9326, NCV37008, 37325, 92727, 40723038, HY-8-8583A, 495000A460, 495003L850, 495003L950, 5000A460, 5003L850, HY10527, HY-8104, 7088259, 7088279, AX-88259
Frequently Asked Questions
Is this a 2009 Hyundai Sonata CV axle replacement for the front right?
Yes. TrakMotive HY-8104 fits the 2006-2010 Hyundai Sonata and the 2006-2010 Hyundai Azera, so a 2009 model is covered on the front right side.
Will this work as a 2006 Hyundai Sonata CV axle replacement on the left side?
No. This listing is the front right axle for the 2006-2010 Hyundai Sonata. The front left side is a separate part and is ordered separately.
Does the TrakMotive CV axle come with a warranty?
Yes. TrakMotive backs HY-8104 with its limited lifetime warranty.
Does this TrakMotive CV axle shaft include the ABS tone ring?
Yes. The shaft has a toothed ABS tone ring with 47 teeth. ABS axles also fit non-ABS applications unless otherwise noted.
Does the axle nut come with this front right axle?
Yes. An axle nut is included: 30 mm hex, M22x1.5 thread, with cotter pin locking.
