Rear CV Axle Shaft for 2011-2013 Kia Sorento & More - TrakMotive HY-8209

$147.99

TrakMotive CV Axle Shaft HY-8209 - view 2

TrakMotive CV Axle Shaft HY-8209 - view 3

Part number: HY-8209

UPC: 844084003294

Condition: New

Weight: 13.70 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$147.99

Current Stock: 18

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

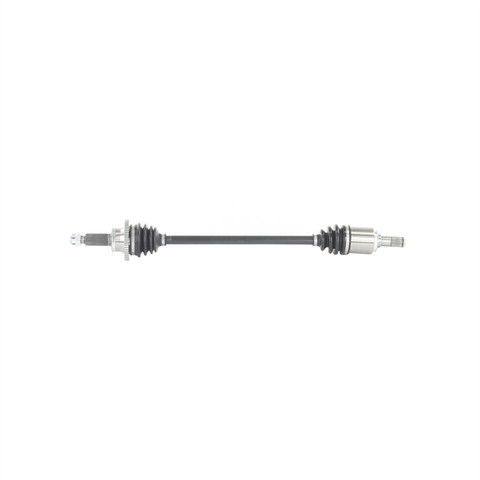

TrakMotive CV Axle Shaft P/N:HY-8209

$147.99

Description

TrakMotive HY-8209 rear CV axle shaft for the 2011-2013 Kia Sorento and other vehicles carries drive torque to the wheel. This TrakMotive CV axle keeps power flowing as the suspension moves.

Toothed ABS tone ring with 52 teeth
Neoprene boots on both the inboard and outboard joints
25 splines on the male inboard joint and 30 on the conventional outboard joint
Axle nut included, with M22x1.5 thread and a 32 mm hex

Quick facts

Part: TrakMotive HY-8209 CV axle shaft
Fits: 2011-2013 Kia Sorento and other vehicles
Position: Rear

A clicking or popping noise in turns, vibration while driving, or grease thrown from a torn boot can mean a CV axle is wearing out. These signs alone do not prove the axle is the problem; a worn wheel bearing can make similar noise. This listing is one shaft, and the two rear shafts are normally replaced together. The 2011-2013 Kia Sorento takes two.

Fits

It fits the 2011-2013 Kia Sorento and the 2010-2012 Hyundai Santa Fe.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Overall compressed length: 818 mm (32.2 in)
Inboard splines: 25
Outboard splines: 30
Axle nut thread size: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Inboard joint: male
Outboard joint: conventional
Boot material: neoprene, both joints
ABS tone ring: included, toothed, 52 teeth
Axle nut locking type: cotter pin
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut.

Interchange: 66-3665 · 60-3665
199209 · NCV37038 · 87691 · 495011U250 · 5011U200 · 5011U250

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

199209, 66-3665, 60-3665, NCV37038, 87691, 495011U250, 5011U200, 5011U250, HY-8209

Buyer's Q&A

Frequently Asked Questions

Is this a CV axle shaft for the 2010-2012 Hyundai Santa Fe?

Yes. TrakMotive HY-8209 is a rear CV axle shaft that fits the 2010-2012 Hyundai Santa Fe and the 2011-2013 Kia Sorento.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. The axle nut is included. It has an M22x1.5 thread and a 32 mm hex, and its locking type is a cotter pin.

How many splines does the HY-8209 axle have?

TrakMotive HY-8209 has 25 splines at the male inboard joint and 30 splines at the conventional outboard joint.

What can a clicking noise in turns mean on a rear CV axle shaft?

A clicking or popping noise in turns can be a sign of a worn joint, and a torn boot that lets grease out can be another. A shop can confirm which part needs replacing.

Does this CV axle shaft include an ABS tone ring?

Yes. TrakMotive HY-8209 includes a toothed ABS tone ring with 52 teeth.
