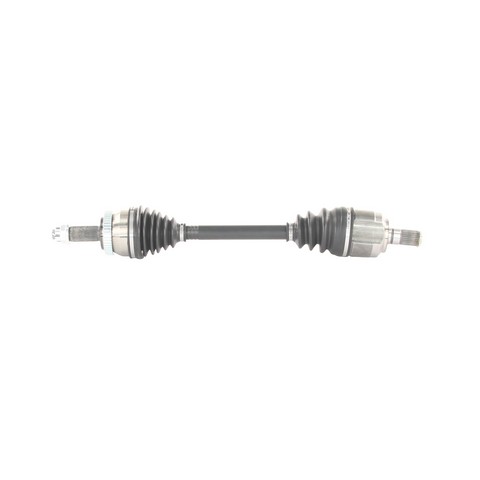

TrakMotive HY-8222 front left CV axle shaft for the 2011-2014 Hyundai Sonata carries drive torque to the wheel and flexes with the suspension. This TrakMotive CV axle replaces a worn or torn axle on the front left side.
A clicking noise on turns, vibration when accelerating or a torn boot with grease thrown around it can mean the axle is wearing out. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make similar noises.
This is a direct-fit CV axle replacement for the 2011-2014 Hyundai Sonata, and the car takes one for the front left. This listing is one axle; the front right is a separate part, and the other side of the front axle is normally done at the same time.
Fit and size
Build and materials
One front left CV axle shaft with its axle nut and toothed ABS tone ring.
Interchange: 66-3763
199222 · NCV37068 · 88633 · 40723063 · 495003Q700 · 5003Q700 · HY10560
This part cross-references / interchanges with the following part numbers:
Will this work as a 2013 Hyundai Sonata CV axle replacement?
Yes. TrakMotive HY-8222 is a front left CV axle shaft for the 2011-2014 Hyundai Sonata, which includes the 2013 model year. The car takes one for that side.
What comes with the TrakMotive CV axle shaft?
TrakMotive HY-8222 comes with its axle nut and a toothed ABS tone ring with 52 teeth. The nut's locking type is a cotter pin.
What size is the axle nut on this front left CV axle?
The axle nut has an M22x1.5 thread and a 32 mm hex, and it is included. The axle's overall compressed length is 665 mm (26.16 in).
How can I tell if a front left CV axle is wearing out?
A clicking noise on turns, vibration under acceleration or a torn boot with grease flung around it can point to a worn axle. A shop can confirm what is causing it.
Does TrakMotive HY-8222 cross-reference to 495003Q700?
Yes. 495003Q700 is listed as an interchange number for the TrakMotive HY-8222 front left CV axle shaft, along with 66-3763 and 5003Q700.
