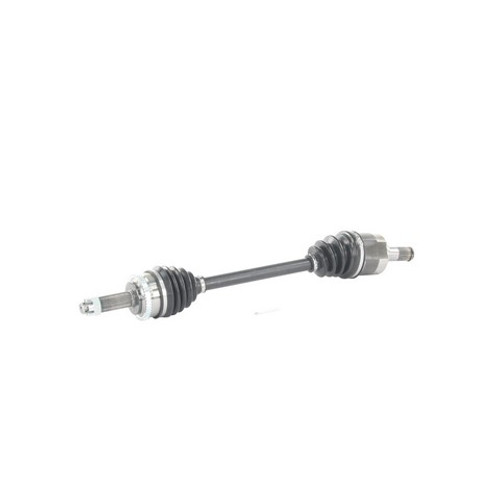

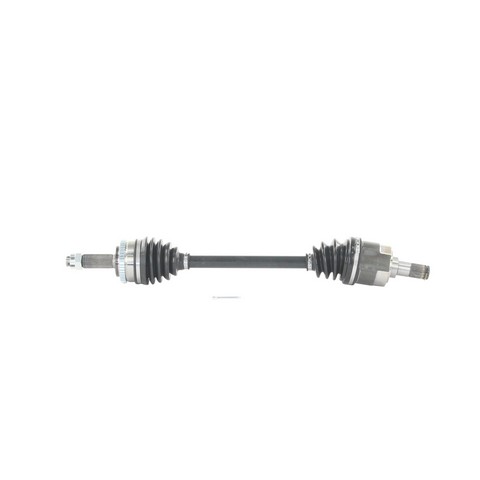

TrakMotive HY-8264 front left CV axle shaft for the 2009-2012 Hyundai Elantra carries drive torque from the transmission to the front left wheel. This TrakMotive CV axle flexes with the suspension through its two joints.
A clicking noise on turns, vibration under load or grease around a torn boot can mean the CV axle shaft is worn. Before you replace it, rule out a worn wheel bearing or tire problems that can feel similar. Front CV axle shafts are normally replaced as a pair, one on each side; this listing is one shaft for the front left, and the front right is a separate part.
This front left CV axle shaft is a direct-fit replacement for the 2009-2012 Hyundai Elantra.
Fit and size
Build and materials
One CV axle shaft with its axle nut.
Interchange: 60-3523 · HY-2281A · AX-88289
NCV37569 · NCV37045 · 495012L100 · 495012L110
This part cross-references / interchanges with the following part numbers:
Is the TrakMotive HY-8264 front left CV axle shaft right for the 2009-2012 Hyundai Elantra?
Yes. TrakMotive HY-8264 is a front left CV axle shaft for the 2009-2012 Hyundai Elantra. The front right side is a separate part.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes. TrakMotive HY-8264 includes the axle nut, which has an M22x1.5 thread and a 32 mm hex and uses cotter pin locking.
Does this front left CV axle shaft include an ABS tone ring?
Yes. The shaft includes a toothed ABS tone ring with 46 teeth.
What should I look for on the neoprene boots of a worn CV axle shaft?
Cracks, tears or grease flung around a boot point to a damaged joint cover, and a clicking noise on turns can also mean a worn joint. A shop can inspect it safely.
Is 495012L100 a number that TrakMotive HY-8264 replaces?
Yes. 495012L100 is an interchange number for TrakMotive HY-8264, along with 495012L110 and 60-3523.
