Front Left CV Axle Shaft for 2012-2017 Hyundai Veloster - TrakMotive HY-8283

$144.99

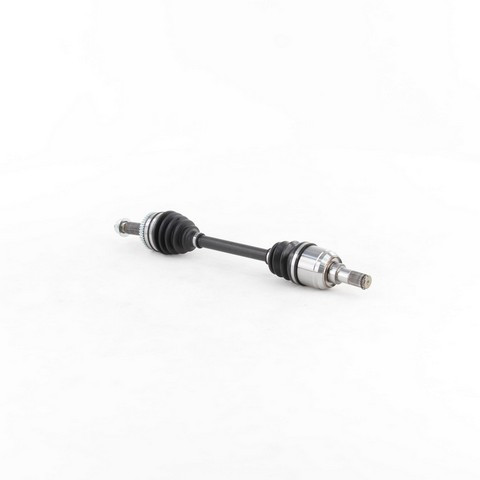

TrakMotive CV Axle Shaft HY-8283 - view 2

TrakMotive CV Axle Shaft HY-8283 - view 3

TrakMotive CV Axle Shaft HY-8283 - view 4

TrakMotive CV Axle Shaft HY-8283 - view 5

Part number: HY-8283

UPC: 844084003836

Condition: New

Weight: 13.50 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$144.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:HY-8283

$144.99

Description

TrakMotive HY-8283 front left CV axle shaft for the 2012-2017 Hyundai Veloster carries drive torque to the wheel. The TrakMotive CV axle has joints at both ends that let the wheel turn and move with the suspension.

Neoprene boots on both the inboard and outboard joints
Male inboard joint paired with a conventional outboard joint
27 splines on both the inboard and outboard ends
Axle nut with stake locking is included

Quick facts

Part: TrakMotive HY-8283 CV axle shaft
Fits: 2012-2017 Hyundai Veloster
Position: Front left
Condition: New

A torn boot, a clicking noise in turns or a vibration at speed can mean an axle is wearing out. To find the cause before replacing it, look over the boots for tears or grease with the engine off. Front axles are normally replaced as a pair; this listing is one front left axle, and the front right is a separate part.

Fits

It fits the 2012-2017 Hyundai Veloster, which takes one axle on each side.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1 for this side
Overall compressed length: 634 mm (24.96 in)
Axle nut thread: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

ABS tone ring: included, toothed, 46 teeth
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Interchange: NCV37044 · 40723068 · 495002V200 · 5002V200 · HY10569

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV37044, 40723068, 495002V200, 5002V200, HY10569, HY-8283

Buyer's Q&A

Frequently Asked Questions

Is this front left CV axle right for a 2013 Hyundai Veloster, within the 2012-2017 range?

Yes. TrakMotive HY-8283 fits the 2012-2017 Hyundai Veloster on the front left, so a 2013 model takes this axle.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. TrakMotive HY-8283 includes its axle nut, so the box holds the axle shaft and the nut.

What socket size does the axle nut on this front left CV axle shaft need?

The nut has a 32 mm hex (1.25 in) and an M22x1.5 thread, and it uses a stake locking type.

Is the ABS tone ring on this axle toothed, and how many teeth does it have?

Yes. The ABS tone ring on TrakMotive HY-8283 is toothed with 46 teeth and is included. ABS axles also fit non-ABS applications unless otherwise noted.

Does NCV37044 match this TrakMotive axle?

Yes. NCV37044 is one of the numbers TrakMotive HY-8283 replaces.
