Front Right CV Axle Shaft for 2017-2020 Hyundai Elantra - TrakMotive HY-8322

$146.99

Vehicles this part fits

    Part number: HY-8322
    UPC: 844084027009
    Condition: New
    Weight: 16.10 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $146.99
    Adding to cart… The item has been added

    Have questions?

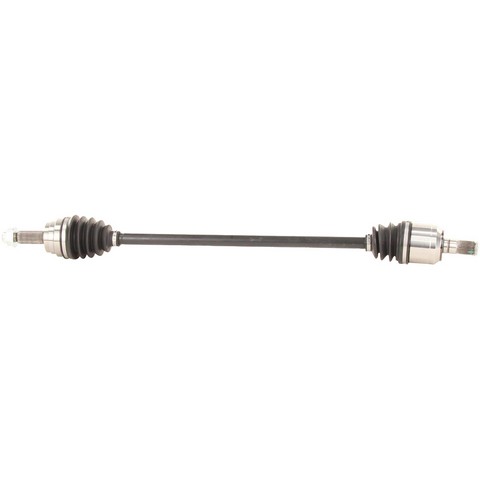

    TrakMotive CV Axle Shaft P/N:HY-8322
    TrakMotive CV Axle Shaft P/N:HY-8322
    $146.99
    $146.99

    TrakMotive HY-8322 front right CV axle shaft for the 2017-2020 Hyundai Elantra carries drive torque to the wheel and flexes with suspension travel. This TrakMotive CV axle replaces a front right shaft with a worn joint or a torn boot.

    • Male inboard joint with 27 splines
    • Conventional outboard joint with 27 splines
    • Neoprene boots on the inboard and outboard joints
    • Axle nut included, with stake locking

    Quick facts

    • Part: TrakMotive HY-8322 CV axle shaft
    • Fits: 2017-2020 Hyundai Elantra
    • Position: Front right
    • Condition: New

    A clicking noise in turns, vibration under acceleration or grease around a torn boot can be signs of a worn axle. A worn wheel bearing, a loose engine mount or an unbalanced tire can be behind similar signs too, so find the cause before buying.

    Fits

    This front right CV axle shaft fits the 2017-2020 Hyundai Elantra, and that side takes one. This listing is a single axle; the front left is a separate part, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front right
    • Overall compressed length: 954 mm (37.56 in)
    • Axle nut thread size: M22x1.5
    • Axle nut hex size: 32 mm (1.26 in)

    Build and materials

    • Joint boot material: neoprene
    • ABS tone ring: not included
    • Condition: New
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One front right CV axle shaft with its axle nut.

    Interchange: NCV37107 · 49501F3100 · 49501F3150 · HY10074E

    This part cross-references / interchanges with the following part numbers:

    NCV37107, 49501F3100, 49501F3150, HY10074E, HY-8322

    Frequently Asked Questions

    Is the TrakMotive HY-8322 front right axle the right one for the 2017-2020 Hyundai Elantra?

    Yes. TrakMotive HY-8322 is the front right CV axle shaft for the 2017-2020 Hyundai Elantra. It covers that side only; the front left is a separate part.

    Does the TrakMotive CV axle shaft come with the axle nut?

    Yes. TrakMotive HY-8322 includes the axle nut, which has an M22x1.5 thread, a 32 mm hex and stake locking.

    Is an ABS tone ring included with this CV axle shaft?

    No. This front right axle does not include an ABS tone ring.

    How long is this front right CV axle when compressed?

    The overall compressed length is 954 mm (37.56 in), with 27 splines at the inboard end and 27 at the outboard end.

    Does a clicking noise when turning mean this CV axle needs replacing?

    No, not always. A click in turns, vibration under acceleration or grease flung from a torn boot can be signs of a worn joint, and a shop can confirm the cause.
