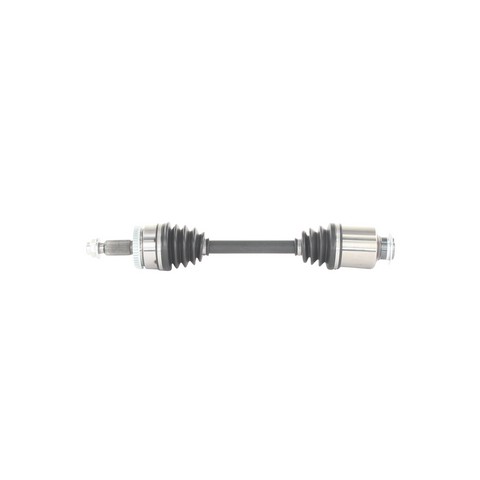

Front Right CV Axle Shaft for 2016-2021 Hyundai Tucson & More - TrakMotive HY-8329

$158.99

TrakMotive CV Axle Shaft HY-8329 - view 2

TrakMotive CV Axle Shaft HY-8329 - view 3

TrakMotive CV Axle Shaft HY-8329 - view 4

TrakMotive CV Axle Shaft HY-8329 - view 5

Part number: HY-8329

UPC: 844084044846

Condition: New

Weight: 15.30 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$158.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:HY-8329

$158.99

Description

TrakMotive HY-8329 front right CV axle shaft for the 2016-2021 Hyundai Tucson and other vehicles carries drive torque to the front right wheel. Its two joints let the shaft keep turning the wheel while the suspension moves and the wheel steers.

Toothed ABS tone ring with 48 teeth included
Neoprene boots on both the inboard and outboard joints
Female inboard joint with 28-2T splines and a conventional outboard joint with 30 splines
Axle nut included, with an M24x1.5 thread and a stake lock
571 mm (22.48 in) overall compressed length

Quick facts

Part: TrakMotive HY-8329 CV axle shaft
Fits: 2016-2021 Hyundai Tucson and other vehicles
Position: Front right
Condition: New

Clicking when turning, vibration, or a torn boot with grease thrown around it can mean the axle is worn. A wheel bearing, a tire or a steering part can be behind those signs too, so find the cause before buying. Both front axles are normally replaced together, and this listing is one axle for the front right.

Fits

This TrakMotive CV axle shaft fits the 2016-2021 Hyundai Tucson and the 2017-2021 Kia Sportage. The 2016-2021 Hyundai Tucson takes one axle on its front right side; the front left is a separate part. ABS axles fit non-ABS applications unless otherwise noted.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1 (this side)
Overall compressed length: 571 mm (22.48 in)
Axle nut: M24x1.5 thread, 32 mm (1.26 in) hex
Splines: 28-2T inboard, 30 outboard

Build and materials

Joints: female inboard, conventional outboard
Axle nut locking: stake
ABS tone ring: included, toothed, 48 teeth
Boot material: neoprene (inboard and outboard)
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Interchange: NCV37110

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV37110, HY-8329

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive CV axle HY-8329 right for the 2016-2021 Hyundai Tucson?

Yes. TrakMotive HY-8329 fits the 2016-2021 Hyundai Tucson on the front right side. The front left axle is ordered separately.

Does this front right axle come with its axle nut?

Yes. The axle nut is included, with an M24x1.5 thread and a 32 mm hex, and it locks by staking.

Does the TrakMotive HY-8329 have an ABS tone ring?

Yes. TrakMotive HY-8329 includes a toothed ABS tone ring with 48 teeth.

What does a worn front CV axle sound like?

A clicking noise when turning, vibration while driving, or grease around a torn boot can mean the axle is worn. A shop can inspect the joints and boots.

Does NCV37110 interchange with this axle shaft?

Yes. NCV37110 is listed as an interchange number for TrakMotive HY-8329.
