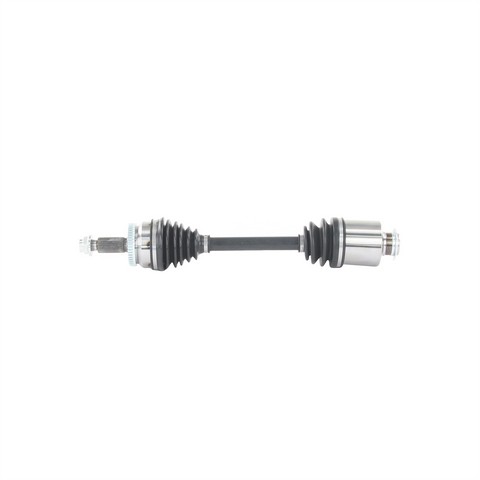

Front Right CV Axle Shaft for 2016-2018 Hyundai Tucson - TrakMotive HY-8338

$166.99

TrakMotive CV Axle Shaft HY-8338 - view 2

TrakMotive CV Axle Shaft HY-8338 - view 3

Part number: HY-8338

UPC: 844084044983

Condition: New

Weight: 17.10 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$166.99

Current Stock: 33

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:HY-8338

$166.99

Description

TrakMotive HY-8338 front right CV axle shaft for the 2016-2018 Hyundai Tucson carries drive torque to the wheel as the suspension moves and the wheel steers.

Toothed ABS tone ring with 48 teeth included
Neoprene boots on both the inboard and outboard joints
Axle nut included, with a 32 mm hex, M24x1.5 thread and stake locking
28-2T inboard splines and 30 outboard splines

Quick facts

Part: TrakMotive HY-8338 CV axle shaft
Fits: 2016-2018 Hyundai Tucson
Position: Front right
Condition: New

A clicking or popping noise on turns, vibration under acceleration, or grease thrown from a split boot can mean a CV axle is wearing out. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make similar noise.

Fits

This TrakMotive CV axle is a direct-fit replacement for the 2016-2018 Hyundai Tucson, which takes one on the front right. The front left is its own part and is ordered separately.

Specifications

Fit and size

Position: Front right
Overall compressed length: 586 mm (23.05 in)
Inboard splines: 28-2T
Outboard splines: 30
Axle nut thread: M24x1.5
Axle nut hex size: 32 mm (1.26 in)

Build and materials

Joints: female inboard, conventional outboard
Boot material: neoprene on both joints
ABS tone ring: included, toothed, 48 teeth
Axle nut: included, stake locking
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Interchange: NCV37169 · HY20066ER

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV37169, HY20066ER, HY-8338

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive HY-8338 fit the 2016-2018 Hyundai Tucson?

Yes. TrakMotive HY-8338 is the front right CV axle shaft for the 2016-2018 Hyundai Tucson. The front left side is a separate part.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes. TrakMotive HY-8338 includes its axle nut, which has a 32 mm hex, an M24x1.5 thread and stake locking.

Does this CV axle shaft include the ABS tone ring?

Yes. The shaft has a toothed ABS tone ring with 48 teeth.

Why does my front right axle click when I turn?

A clicking on turns, vibration when accelerating or grease thrown from a split boot can mean a worn CV joint. A shop can inspect the boot and joint to confirm.

Is NCV37169 the same axle as this one?

Yes. NCV37169 and HY20066ER are interchange numbers listed for this part, TrakMotive HY-8338.
