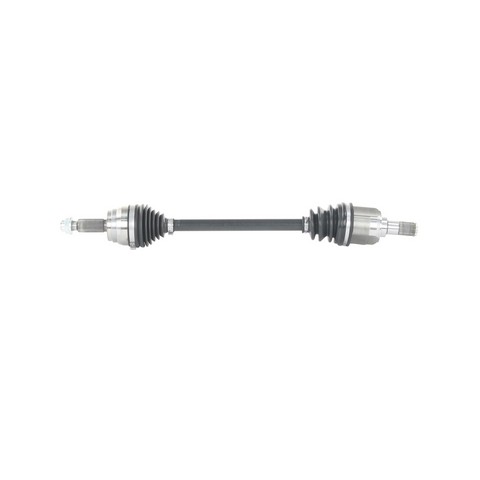

TrakMotive HY-86030 front left CV axle shaft for the 2017-2020 Hyundai Elantra and other vehicles sends drive torque to the wheel.
A worn axle can bring clicking in turns, vibration under acceleration or a split boot with grease thrown around the wheel well. With the engine off, that boot is the easy thing to look at; clicking can also come from a wheel bearing or suspension part, so find the source before replacing the shaft.
This axle is a direct-fit replacement for the 2017-2020 Hyundai Elantra and the 2019-2021 Hyundai Veloster. This listing is one shaft for the front left; the front right is a separate part.
Fit and size
Build and materials
One CV axle shaft. The axle nut and the ABS tone ring are not included, so plan on a new axle nut rather than reusing the old one.
This part cross-references / interchanges with the following part numbers:
Is this TrakMotive CV axle right for the 2019-2021 Hyundai Veloster?
Yes. TrakMotive HY-86030 is a front left CV axle shaft for the 2019-2021 Hyundai Veloster and the 2017-2020 Hyundai Elantra.
Does the TrakMotive CV axle shaft come with the axle nut?
No. This listing is one shaft only; the axle nut and the ABS tone ring are not included, so plan on buying a new axle nut.
What axle nut size and spline count does this front left CV axle shaft have?
The axle nut thread is M22x1.5 with a 32 mm (1.25 in) hex size. The shaft has 27 splines at the inboard end and 27 at the outboard end.
What does a worn CV axle joint sound like?
A clicking or popping noise in turns, or vibration when accelerating, can mean a worn joint. A split boot with grease thrown out is another sign, and a shop can test the joints.
How long is the HY-86030 CV axle shaft?
TrakMotive HY-86030 measures 685 mm (26.94 in) overall when compressed and 727 mm (28.63 in) when extended.
