Front CV Axle Shaft for 2022-2023 Hyundai Ioniq 5 & More - TrakMotive HY-86063

$158.99

TrakMotive CV Axle Shaft HY-86063 - view 2

TrakMotive CV Axle Shaft HY-86063 - view 3

Part number: HY-86063

UPC: 840140517019

Condition: New

Weight: 18.30 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$158.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

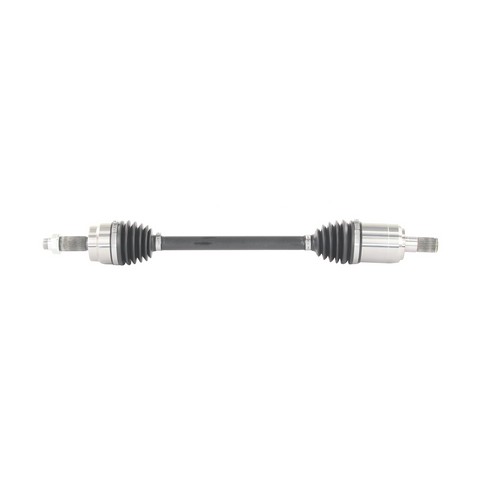

TrakMotive CV Axle Shaft P/N:HY-86063

$158.99

Description

TrakMotive HY-86063 front CV axle shaft for the 2022-2023 Hyundai Ioniq 5 and other vehicles carries drive torque to the front wheel. Its two joints let the shaft keep turning as the suspension moves and the wheel steers.

Thermoplastic boots on both the inboard and outboard joints
Male inboard joint with 28 splines and conventional outboard joint with 30 splines
Spline connection at the inboard and outboard shaft ends
Axle nut with M24*1.5 thread, 35.6 mm hex and stake locking

Quick facts

Part: TrakMotive HY-86063 CV axle shaft
Fits: 2022-2023 Hyundai Ioniq 5 and other vehicles
Position: Front
Condition: New

A clicking noise in turns, vibration while driving or grease thrown from a torn boot can mean a CV axle shaft is worn. These signs alone do not prove the shaft is at fault, since a worn wheel bearing can make similar noise. Front CV axle shafts are normally replaced as a pair; this listing is one shaft.

Fits

This is a direct-fit replacement for the 2022-2023 Hyundai Ioniq 5, which takes two, and the 2023 Hyundai Ioniq 6.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Overall compressed length: 749.5 mm (29 1/2 in)
Overall extended length: 812 mm (31 15/16 in)

Build and materials

ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

HY-86063

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive HY-86063 fit the 2023 Hyundai Ioniq 6?

Yes. TrakMotive HY-86063 is a front CV axle shaft that fits the 2023 Hyundai Ioniq 6 as well as the 2022-2023 Hyundai Ioniq 5.

Does this TrakMotive CV axle come with a warranty?

Yes. TrakMotive covers the HY-86063 with a limited lifetime warranty.

What size is the axle nut on this TrakMotive CV axle shaft?

The axle nut has an M24*1.5 thread and a 35.6 mm (1 3/8 in) hex, and it comes with the shaft. The nut locks by staking.

Does this front CV axle shaft include an ABS tone ring?

No. The ABS tone ring is not included with this shaft.

How long is the HY-86063 axle shaft?

It measures 749.5 mm (29 1/2 in) compressed and 812 mm (31 15/16 in) extended.
