Rear Left CV Axle Shaft for 2011-2016 Hyundai Equus & More - TrakMotive HY-86081

$431.99

TrakMotive CV Axle Shaft HY-86081 - view 2

TrakMotive CV Axle Shaft HY-86081 - view 3

TrakMotive CV Axle Shaft HY-86081 - view 4

TrakMotive CV Axle Shaft HY-86081 - view 5

TrakMotive CV Axle Shaft HY-86081 - view 6

Part number: HY-86081

UPC: 840140519525

Condition: New

Weight: 22.30 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$431.99

Current Stock: 6

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

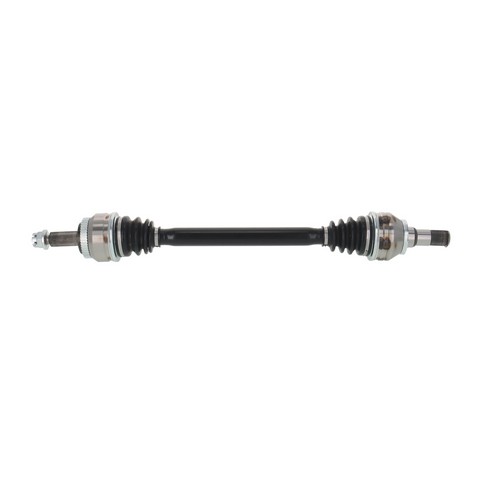

TrakMotive CV Axle Shaft P/N:HY-86081

$431.99

Description

Keep power flowing to the rear wheel with the TrakMotive CV Axle Shaft HY-86081 (also written HY86081), a rear left replacement half-shaft that transfers torque from the drivetrain to the wheel hub while accommodating suspension travel. It installs as a direct-fit replacement for the 2009-2014 Hyundai Genesis [All] and the 2011-2016 Hyundai Equus [All]. Torn boots, clicking on turns, or vibration under acceleration are signs a worn CV axle may need replacing.

Neoprene CV boots: inboard and outboard joints are protected by neoprene boots.
ABS tone ring included: pre-fitted toothed ABS tone ring with a 47-tooth count.
Axle nut included: ships with the M22x1.5 axle nut (32 mm hex, cotter-pin locking).
Spline connections: 30 inboard splines and 30 outboard splines; male inboard joint with a conventional outboard joint.

Built to Premium grade and backed by a Limited Lifetime Warranty. Per the manufacturer, ABS axles fit non-ABS applications unless otherwise noted. Country of origin: China.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

HY-86081

Buyer's Q&A

Frequently Asked Questions

What position does this CV axle fit?

It is cataloged as the rear left CV axle shaft for the listed Hyundai Genesis and Equus applications.

Which vehicles does HY-86081 fit?

It fits the 2009-2014 Hyundai Genesis [All] and the 2011-2016 Hyundai Equus [All]. Confirm your vehicle in the "Vehicles it fits" section.

Is the axle nut included?

Yes. It ships with the M22x1.5 axle nut, which uses a 32 mm hex and a cotter-pin locking type.

Does it include an ABS tone ring?

Yes. A toothed ABS tone ring with a 47-tooth count is included. Per the manufacturer, ABS axles fit non-ABS applications unless otherwise noted.

What are common signs a CV axle needs replacing?

Clicking noises during turns, grease thrown from a torn boot, or vibration under acceleration. Diagnose the cause before replacing, as symptoms can have other sources.
