Front Right CV Axle Shaft for 2022-2023 Hyundai Tucson - TrakMotive HY-86118

$152.99

TrakMotive CV Axle Shaft HY-86118 - view 2

TrakMotive CV Axle Shaft HY-86118 - view 3

Part number: HY-86118

UPC: 840140521535

Condition: New

Weight: 15.10 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$152.99

Current Stock: 14

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

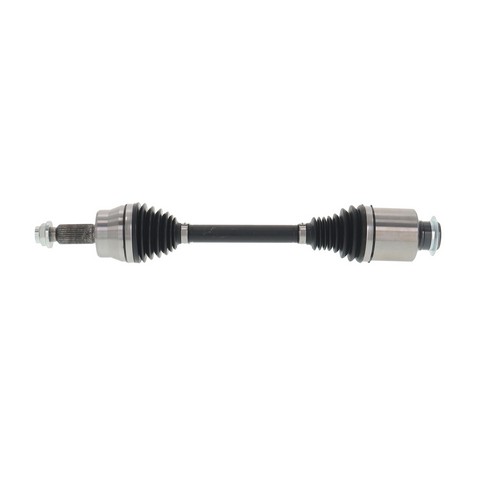

TrakMotive CV Axle Shaft P/N:HY-86118

$152.99

Description

TrakMotive HY-86118 front right CV axle shaft for the 2022-2023 Hyundai Tucson transfers drive torque to the front right wheel. This TrakMotive CV axle replaces a worn or damaged axle on that side.

Thermoplastic boots on both the inboard and outboard joints
Female inboard joint with a spline shaft connection
Conventional outboard joint with 30 splines
Axle nut included, with stake locking

Quick facts

Part: TrakMotive HY-86118 CV axle shaft
Fits: 2022-2023 Hyundai Tucson
Position: Front right
Condition: New

A clicking or popping noise in turns, vibration under drive, or grease around a torn boot can mean the axle is worn. Before you replace it, rule out a worn wheel bearing or a loose axle nut, since those can produce similar noise or vibration; a shop can test for them.

Fits

It fits the 2022-2023 Hyundai Tucson, which takes one axle on this side. The front left is a separate part and is ordered separately.

Specifications

Fit and size

Position: Front right
Quantity for this side: 1
Overall compressed length: 583 mm (22.94 in)
Overall extended length: 635 mm (25 in)
Axle nut thread size: M24x1.5
Axle nut hex size: 32 mm (1.25 in)
Axle nut height: 23 mm (0.875 in)
Axle nut length: 37 mm (1.44 in)

Build and materials

Inboard joint: female, spline connection
Outboard joint: conventional, spline connection
Joint boot material: thermoplastic
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

HY-86118

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive HY-86118 fit the 2022-2023 Hyundai Tucson?

Yes. TrakMotive HY-86118 is the front right CV axle shaft for the 2022-2023 Hyundai Tucson; the front left side is a separate part.

Does this front right CV axle come with the axle nut?

Yes. TrakMotive HY-86118 includes the axle nut (M24x1.5 thread, 32 mm hex) but not the ABS tone ring.

What is the overall length of this front right CV axle?

Compressed it measures 583 mm (22.94 in), and extended it measures 635 mm (25 in).

How can I tell if a CV axle boot is damaged?

Cracks, tears or grease flung around a joint boot are signs it is damaged, and clicking in turns can mean the axle is worn. A shop can inspect the axle and its boots.

Is the TrakMotive CV axle shaft covered by a warranty?

Yes. TrakMotive covers it with a limited lifetime warranty.
