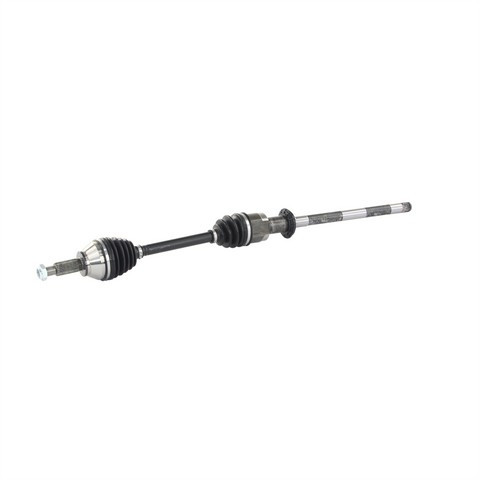

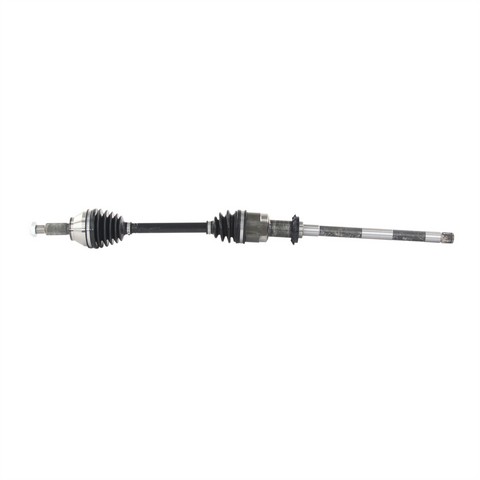

TrakMotive CV Axle Shaft P/N:JG-8001

Be the first to review this product
$147.99
MPN: JG-8001
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
TrakMotive CV Axle Shaft P/N:JG-8001
TrakMotive CV Axle Shaft P/N:JG-8001
$147.99

Restore reliable power delivery to your wheels with the TrakMotive CV Axle Shaft (JG-8001), a premium-grade replacement that installs as a direct-fit for the 2002-2008 Jaguar X-TYPE [All]. A CV axle transfers engine torque to the wheel while its constant-velocity joints flex with suspension travel and steering. Clicking during turns, vibration under acceleration, or grease slung from a split boot are signs a CV axle may need replacing — if a worn axle is the cause, this one drops in to replace it.

  • Neoprene CV boots: both the inboard and outboard joint boots are neoprene, helping hold grease in and keep contaminants out.
  • Matched spline counts: 23 inboard splines with a male inboard joint, and 27 outboard splines with a conventional outboard joint.
  • Axle nut included: ships with a self-locking axle nut (M22x1.5 thread, 32 mm hex).
  • Premium grade: overall compressed length of 38.11 in (968 mm); backed by a Limited Lifetime Warranty from an ISO 9001:2008 and TS 16949:2009 certified manufacturer.

This axle does not include an ABS tone ring. One axle is used per application. Country of origin: China.

Manufacturer part number JG-8001 (also JG8001).

This part cross-references / interchanges with the following part numbers:

80-3501, 359001, 66-2177, 60-2177, NCV24501, 55108, 40726002, C2S29729, C2S4862, JG10502, JG-8001, AX-9211

Frequently Asked Questions

Will this CV axle fit my vehicle?

It is cataloged as a direct-fit replacement for the 2002-2008 Jaguar X-TYPE [All]. Confirm your vehicle in the Buyer's Guide tab before ordering.

Is the axle nut included?

Yes. It ships with a self-locking axle nut featuring an M22x1.5 thread and a 32 mm hex.

Does this axle include an ABS tone ring?

No. An ABS tone ring is not included with this axle.

What material are the CV joint boots?

Both the inboard and outboard joint boots are neoprene, which helps retain grease and keep out contaminants.

What are common signs a CV axle needs replacing?

Clicking or popping during turns, vibration under acceleration, and grease thrown from a torn boot are signs the axle may need replacing. Diagnose the cause before replacing.
