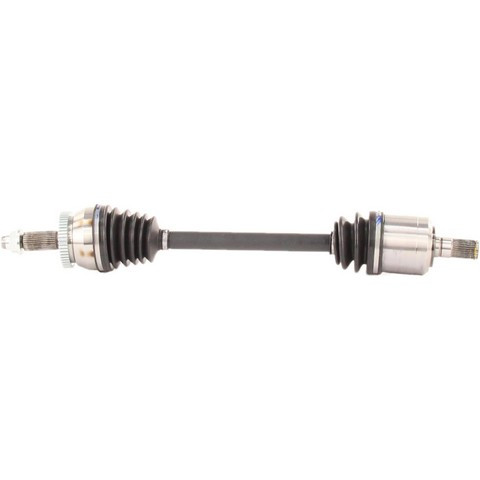

TrakMotive KA-8144 front left CV axle shaft for the 2015-2018 Kia Sedona sends drive torque from the transmission to the wheel. This TrakMotive CV axle is the replacement for a worn or damaged one on the front left.
A clicking or popping noise in turns, grease thrown from a torn boot, or vibration when accelerating can mean the CV axle shaft is worn. These signs alone do not prove the shaft is the problem; a worn wheel bearing can make similar noises.
It is a CV axle shaft for the 2015-2018 Kia Sedona. This listing is one shaft for the front left; the front right is a separate part, and both sides are normally replaced together. The 2015-2018 Kia Sedona takes one front left axle shaft.
Fit and size
Build and materials
One CV axle shaft with its axle nut.
Interchange: NCV75086 · 49500A9300
This part cross-references / interchanges with the following part numbers:
Is this the right 2015-2018 Kia Sedona CV axle shaft for the front left side?
Yes. TrakMotive KA-8144 is the front left CV axle shaft for the 2015-2018 Kia Sedona. The front right side is a separate part.
What size is the axle nut on this TrakMotive CV axle shaft?
The included axle nut has an M22x1.5 thread and a 32 mm hex, and it locks by staking. TrakMotive KA-8144 comes with the nut.
Does this front left axle shaft include an ABS tone ring?
Yes. TrakMotive KA-8144 includes a toothed ABS ring with 52 teeth.
What can clicking in tight turns mean on a CV axle shaft?
A clicking or popping sound in turns, or grease flung from a split boot, can mean the joint is worn. A shop can inspect the joints and boots.
How long is the TrakMotive KA-8144 axle shaft and how many splines does it have?
Overall compressed length is 726 mm (28.56 in). TrakMotive KA-8144 has 28 splines on the inboard end and 30 on the outboard end.
