Front Right CV Axle Shaft for 2020-2023 Hyundai Sonata & More - TrakMotive KA-86025

$167.99

TrakMotive CV Axle Shaft KA-86025 - view 2

TrakMotive CV Axle Shaft KA-86025 - view 3

TrakMotive CV Axle Shaft KA-86025 - view 4

TrakMotive CV Axle Shaft KA-86025 - view 5

TrakMotive CV Axle Shaft KA-86025 - view 6

Part number: KA-86025

UPC: 840140519204

Condition: New

Weight: 19.10 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$167.99

Current Stock: 18

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

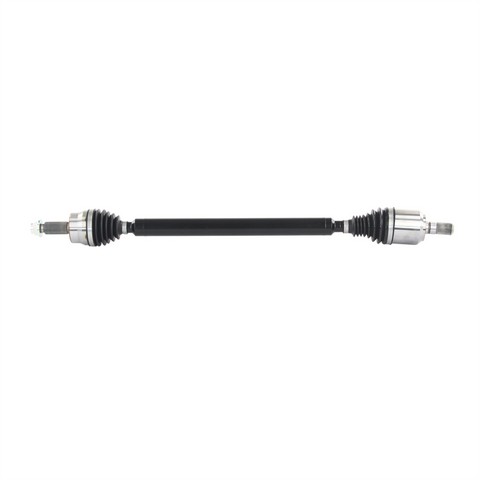

TrakMotive CV Axle Shaft P/N:KA-86025

$167.99

Description

TrakMotive KA-86025 front right CV axle shaft for the 2020-2023 Hyundai Sonata and other vehicles carries drive torque to the front right wheel. A splined joint at each end lets the shaft keep turning the wheel while the suspension moves and the wheel steers.

Thermoplastic boots on both the inboard and outboard joints
Male inboard joint with 27 splines and conventional outboard joint with 30 splines
Axle nut included, with an M24x1.5 thread and stake locking

Quick facts

Part: TrakMotive KA-86025 CV axle shaft
Fits: 2020-2023 Hyundai Sonata and other vehicles
Position: Front right
Condition: New

A clicking noise on turns, vibration while driving or grease around a torn boot can mean the axle is worn. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make similar noises.

Fits

This TrakMotive CV axle shaft fits the 2020-2023 Hyundai Sonata and the 2021-2023 Kia K5.

Specifications

Fit and size

Position: front right
Quantity for the front right: 1
Overall compressed length: 956 mm (37.625 in)
Overall extended length: 1004 mm (39.5 in)
Inboard splines: 27
Outboard splines: 30
Axle nut thread size: M24x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Inboard joint: male
Outboard joint: conventional
Joint boot material: thermoplastic (inboard and outboard)
Axle nut locking type: stake
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. This listing is one front right axle, and that side takes one; the front left is a separate part ordered separately. An ABS tone ring is not included.

Interchange: NCV71002K

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV71002K, KA-86025

Buyer's Q&A

Frequently Asked Questions

Is this a CV axle replacement for the 2020-2023 Hyundai Sonata?

Yes. TrakMotive KA-86025 is the front right CV axle shaft for the 2020-2023 Hyundai Sonata, and it also fits the 2021-2023 Kia K5.

Does this TrakMotive CV axle come with the axle nut?

Yes. The axle nut is included, with an M24x1.5 thread and a 32 mm hex. The ABS tone ring is not included.

How long is the TrakMotive KA-86025 axle shaft?

Overall length is 956 mm (37.625 in) compressed and 1004 mm (39.5 in) extended.

Why would a front CV axle click on tight turns?

A clicking noise on tight turns can be a sign of a worn joint, and vibration or grease around a torn boot can point the same way. A torn boot is visible with the engine off.

Which joint types and spline counts does this CV axle have?

The inboard end is a male joint with 27 splines, and the outboard end is a conventional joint with 30 splines. Both joint boots are thermoplastic.
