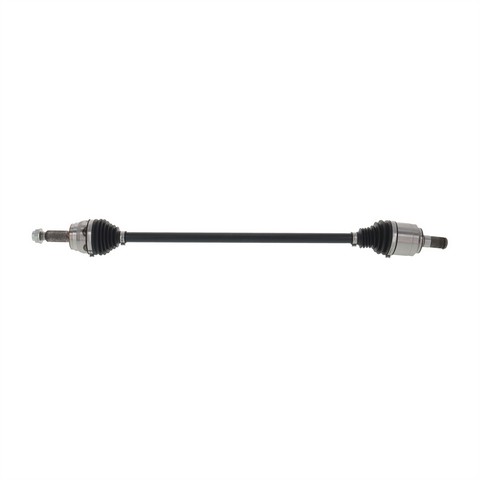

Front Right CV Axle Shaft for 2020-2022 Kia Soul - TrakMotive KA-86058

$123.99

TrakMotive CV Axle Shaft KA-86058 - view 2

TrakMotive CV Axle Shaft KA-86058 - view 3

Part number: KA-86058

UPC: 840140521634

Condition: New

Weight: 19.40 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$123.99

Current Stock: 21

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:KA-86058

$123.99

Description

TrakMotive KA-86058 front right CV axle shaft for the 2020-2022 Kia Soul carries drive torque from the transmission to the front right wheel. The TrakMotive CV axle flexes with the suspension and steering while it keeps turning the wheel.

Male inboard joint with a spline shaft connection and 27 splines
Conventional outboard joint with a spline connection and 27 splines
Thermoplastic boots on the inboard and outboard joints
Axle nut included, with M22x1.5 thread and stake locking
Overall length of 958 mm compressed and 1004 mm extended

Quick facts

Part: TrakMotive KA-86058 CV axle shaft
Fits: 2020-2022 Kia Soul
Position: Front right
Condition: New

Clicking or popping in turns, vibration while driving or grease around a torn boot can be signs of a worn axle, and a bad wheel bearing or tire can make similar noises. With the engine off, look the boots over for tears or fresh grease, and let a shop find the cause if you can't see them well.

Fits

It fits the 2020-2022 Kia Soul, which takes one on each side of the front axle. This listing is the front right one. The front left is ordered separately, and the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: Front right
Quantity per vehicle: one on each side of the front axle
Overall compressed length: 958 mm (37.69 in)
Overall extended length: 1004 mm (39.5 in)
Inboard and outboard splines: 27 each
Axle nut thread: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Joint boot material: thermoplastic (inboard and outboard)
Axle nut locking: stake
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

KA-86058

Buyer's Q&A

Frequently Asked Questions

Will the TrakMotive KA-86058 CV axle fit the 2020-2022 Kia Soul?

Yes. TrakMotive KA-86058 is the front right CV axle shaft for the 2020-2022 Kia Soul, and this listing is one side only.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. The TrakMotive KA-86058 includes its axle nut, which has an M22x1.5 thread, a 32 mm hex and stake locking. The ABS tone ring is not included.

How many splines does this CV axle have on each end?

Both the inboard and outboard ends have 27 splines. The inboard joint is male and the outboard joint is conventional.

What can a clicking noise in turns mean on a front CV axle?

A clicking or popping noise in turns, vibration or grease around a torn boot can be signs of a worn axle. A shop can find the cause, since other parts can make similar noises.

How long is the TrakMotive KA-86058 axle?

It measures 958 mm (37.69 in) compressed and 1004 mm (39.5 in) extended.
